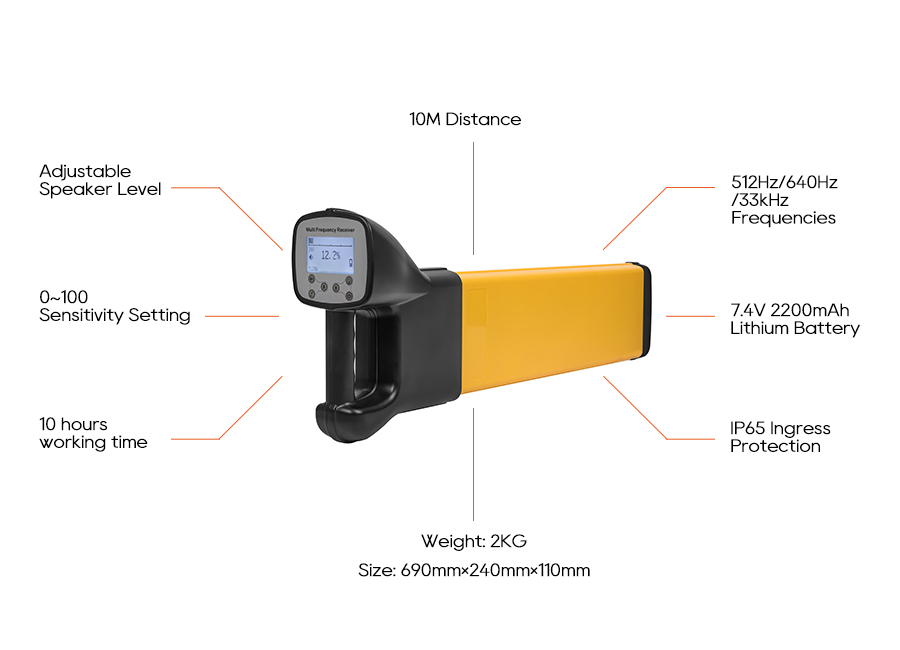

Locate Frequencies:512Hz/640Hz/33kHz
- Power Line Locate:50/60Hz Power Line
- Radio Frequencies:6KHz-22KHz
- Receive Distance:10 meters (open area)
- Percentage Signal Level: on screen
- Signal Level Output:Speaker or headphone
- Sensitivity Setting:0~100
- Speaker Level:Adjustable
- LCD Back Light:Adjustable
- Size: 690mm×240mm×110mm
- Weight: 2KG
- Ingress Protection: IP65
- Operating Temperature: -10~50℃/+14~+122℉
- Storage Temperature: -20~60℃/+4~+140℉
- Power supply:Lithium Battery 7.4V 2200mAh (Build-in)
- Working time: 10 hours
- Current Consume:220mA(max)
- Charge time:3 hours
Charge Power Supply:5V DC (USB-Type C Cable)

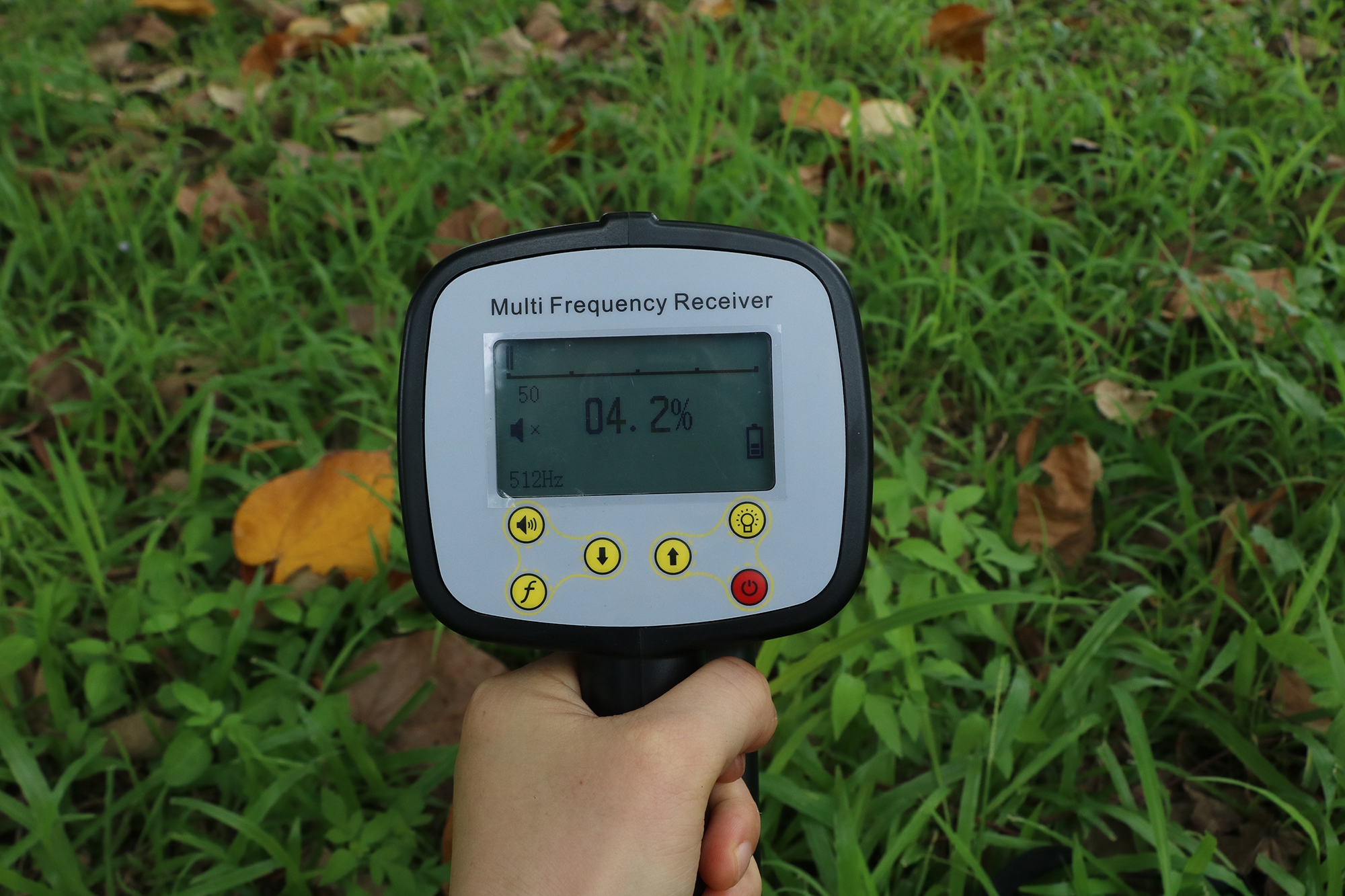

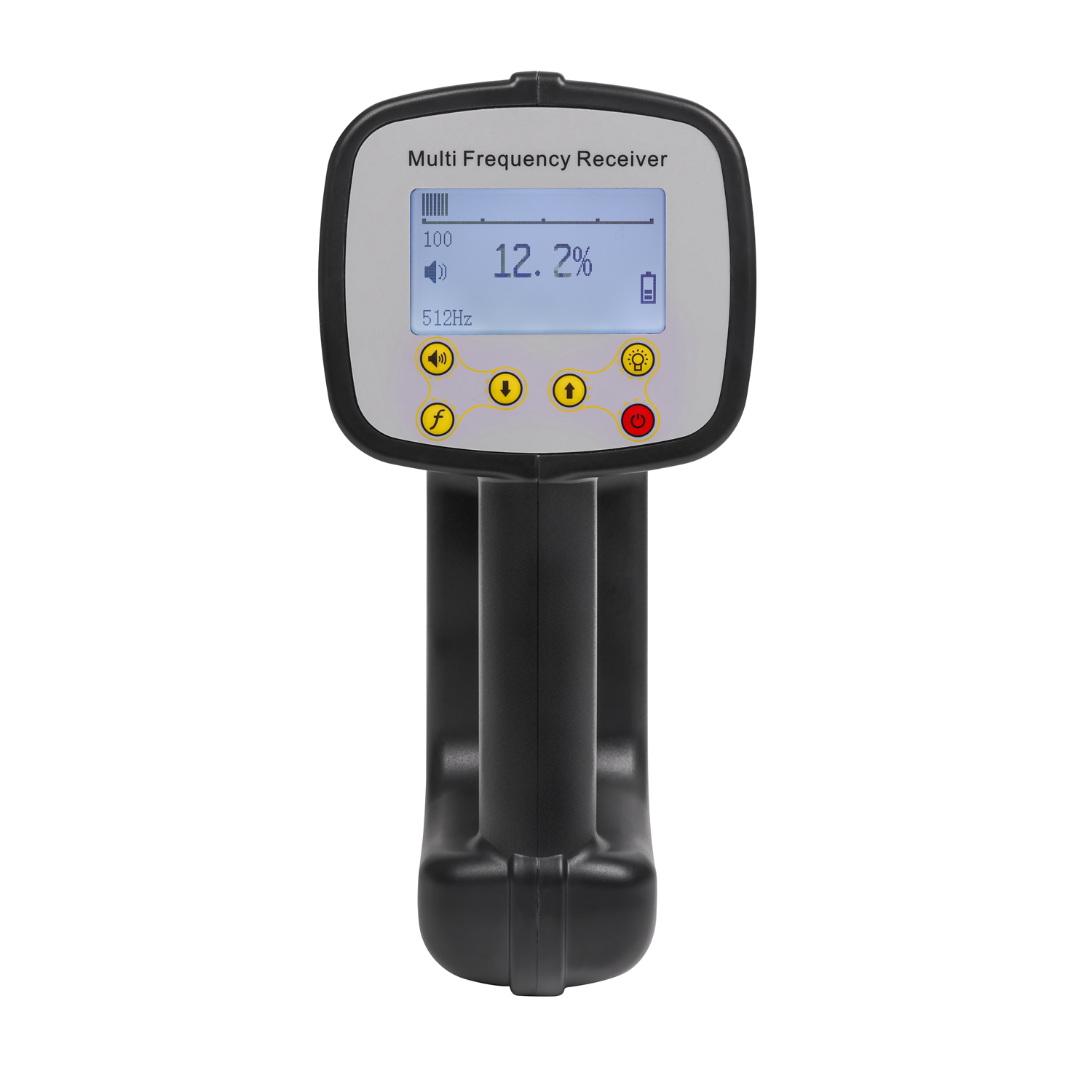

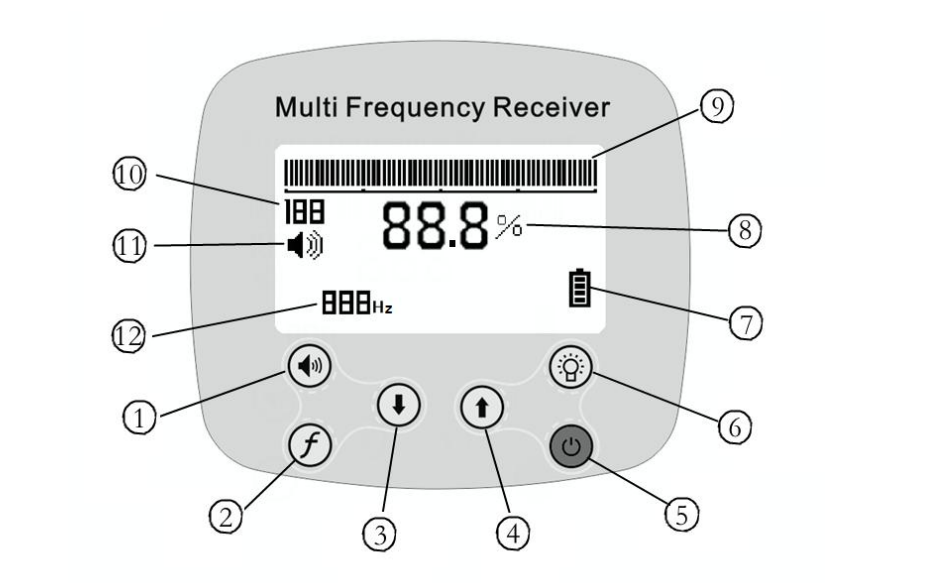

Display and Function keys
(1) Speaker volume. Set speaker volume level (off, low, mid, high).
(2) Frequency key. Select the frequency. Ensure that the Locator frequency is the same as power cable ,sonde or transmitter.
(3) Gain down Key. Decrease the signal gain, Press and hold down the Gain down Key to quickly decrease the signal gain.
(4) Gain up Key. Increases the signal gain, Press and hold down the Gain up Key to quickly increase the signal gain.
(5) On/Off key. Press and hold more than 2s to Power on/off the Locator. Notes: When no key is pressed, the Locator will automatically shut down after 10 minutes. Frequency and Volume settings saved when the Locator is power off.
(6) Backlight Key. Switches the LCD Backlight on and off.
(7) Battery level indication The battery icon flicker when battery low.
(8) (9) Signal strength. Indicates the signal strength.
(10) Gain. Signal gain-setting value.
(11) Speaker volume. Shows speaker volume(off, low, mid, high)
(12) Selected frequency indication. Displays selected frequency
When the signal is too strong at close range, please reduce the gain for more accurate locating.
At long distance, increase gain to detect the signal.
