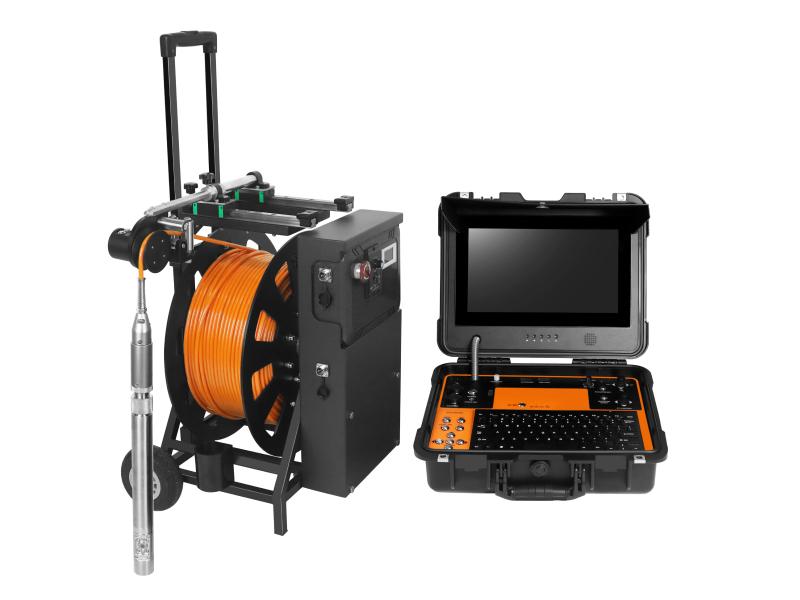

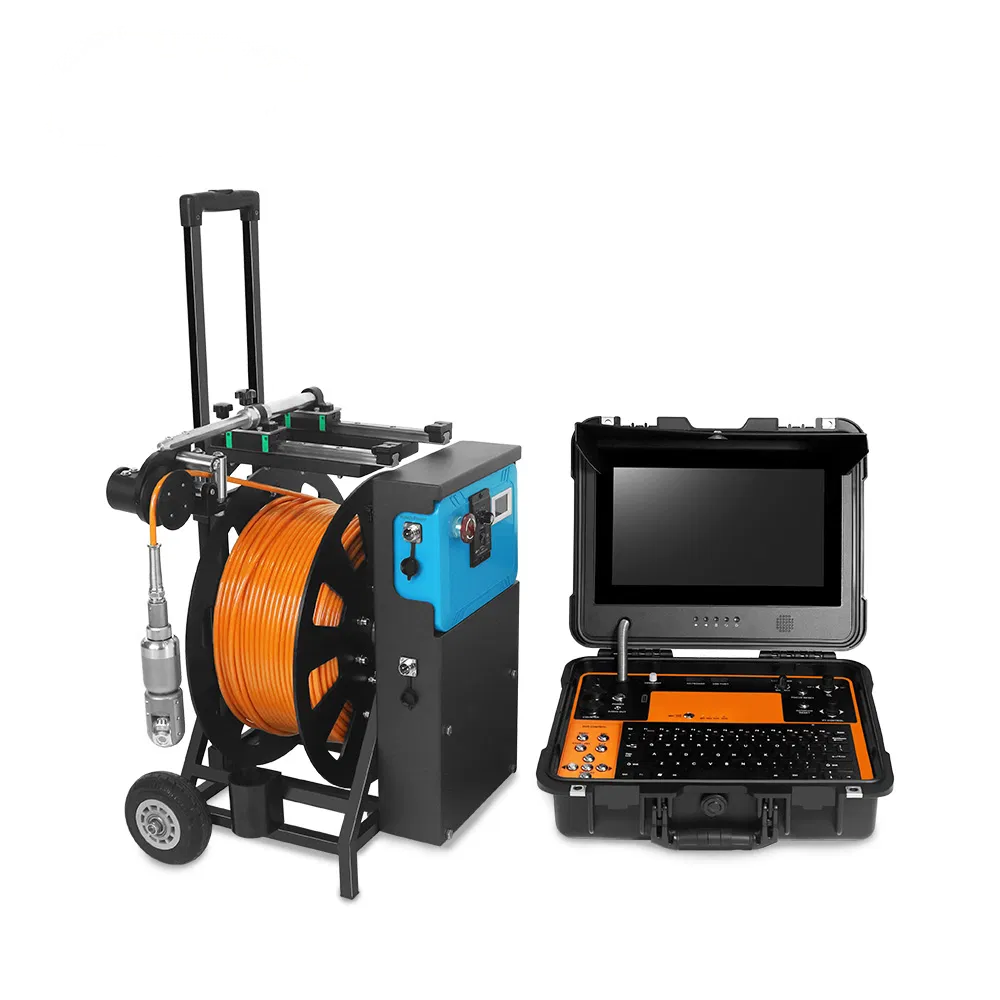

Well Camera Ø45mm Dual / Ø50mm 360° Rotating 200m Camera with Electrical Winch
The Well Inspection Camera is a compact well camera for quick and efficient inspection of reservoirs, shafts, vertical pipes, water wells, and tank inspections.
This compact and battery-operated tool boasts a dual camera head of just 45mm (1.77") in diameter, allowing operators to acquire comprehensive, detailed images from a top-down perspective in a single pass.
Pipe diameters from 2" to 40" can be easily inspected and documented with this compact and portable water well camera.
Dual HD Cameras: Includes a side-view camera with a 360-degree rotation feature for comprehensive sidewall imaging and a downward-facing camera with a fixed wide-angle lens for clear downhole views.
Powerful LED Lights: Each well inspection camera has powerful, long-lasting LED lights, ensuring bright, detailed visuals even in low-light conditions.
Ingress protection: The camera head housing is IP68 waterproof and can withstand pressures of up to 30 bars (1,000 ft.) in freshwater, ensuring reliability and durability.

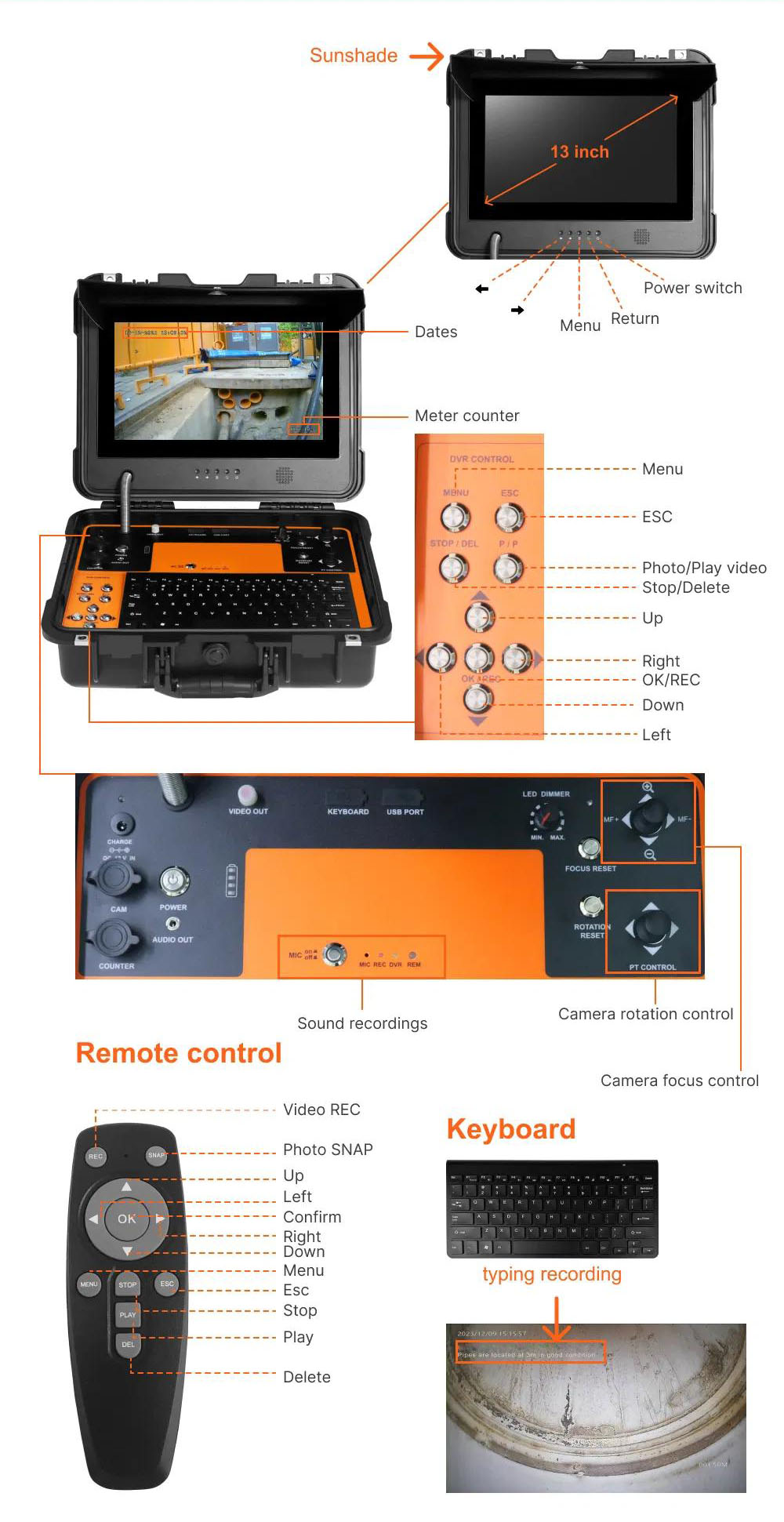

User-Friendly Control Unit: Features a battery-operated, high-defintion 13" LCD display for on-site viewing. The system supports snapshot and video capture, with data storage available via USB flash memory. The camera's depth in the well can be monitored directly on the display for enhanced operational awareness. A USB wireless keyboard is used for adding comments and notes during inspections.
Extended Reach Cable: A 200m (656 ft.) long, 8mm diameter flexible cable on a manual reel with a mechanical brake makes it easy to manage and secure during use.

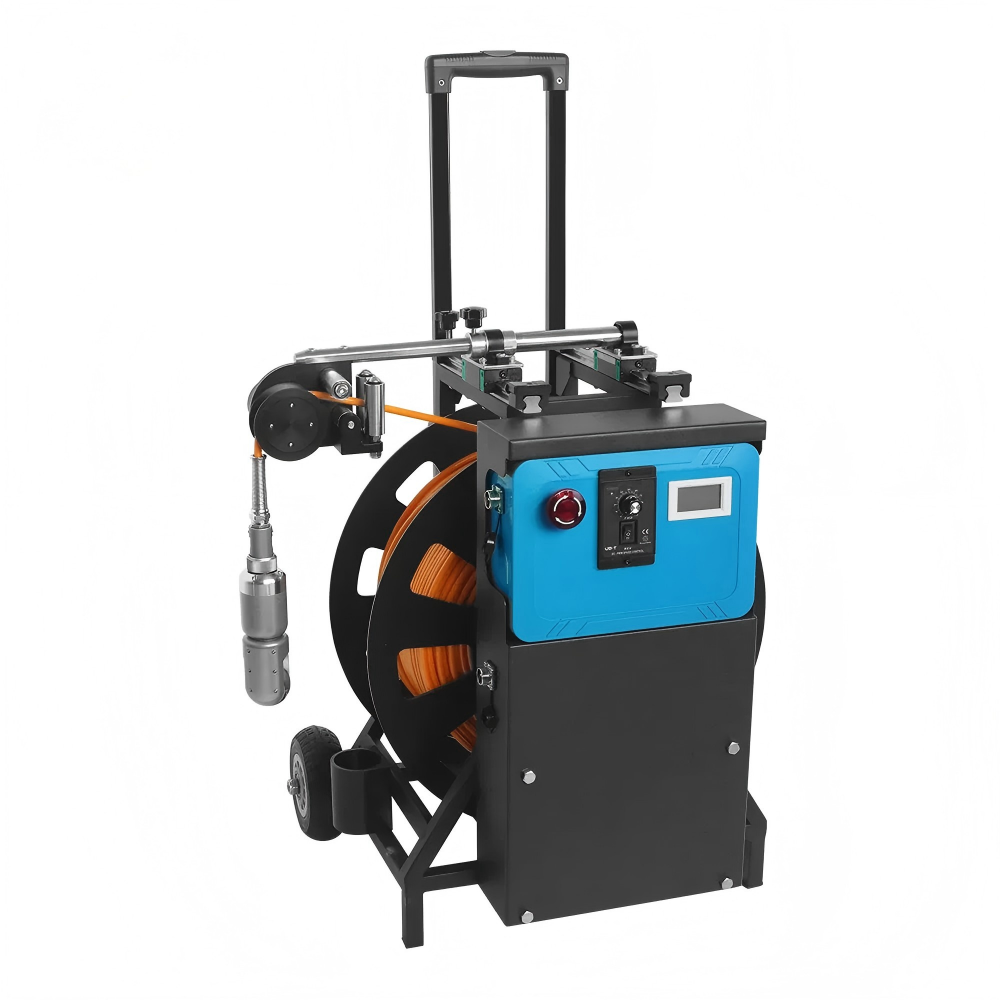

Portable and Compact: The motorized reel system houses a cable length of 200M (656ft) and is powered by a AC110V-230V. The reinforced flexible cable connects to the camera head with a special waterproof connection and has a diameter of 8mm.
Main Part 1: 45mm Dual view (side/down) camera head

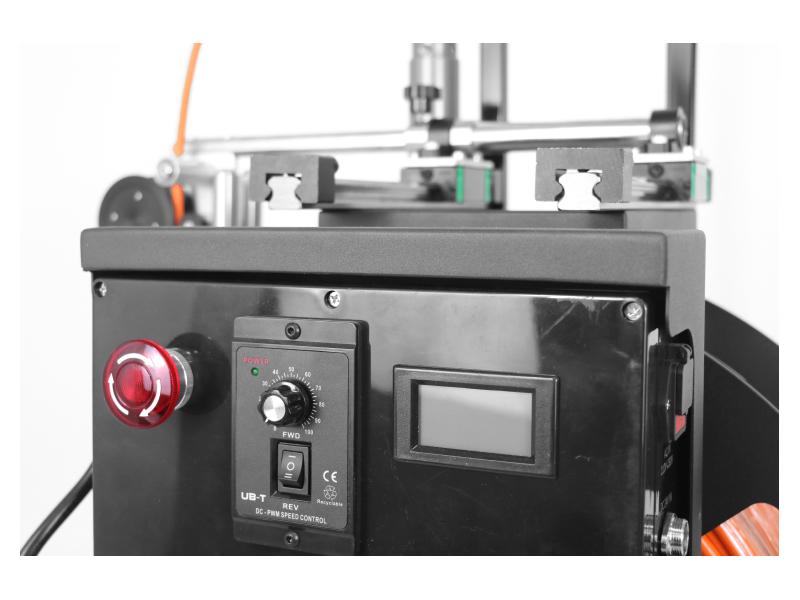

Winch operating knob（adjusting speed, cable up and down, brake），Camera rotation control button
On-screen depth encoder, temperature and direction
AC110V-230V input port AC power supply for electrical winch working
Built in WIFI transmitter：Using intelligent terminals as display and recording device
Transmitter distance 30m
Through WIFI wireless transmit video to Android, Apply OS or MID terminal

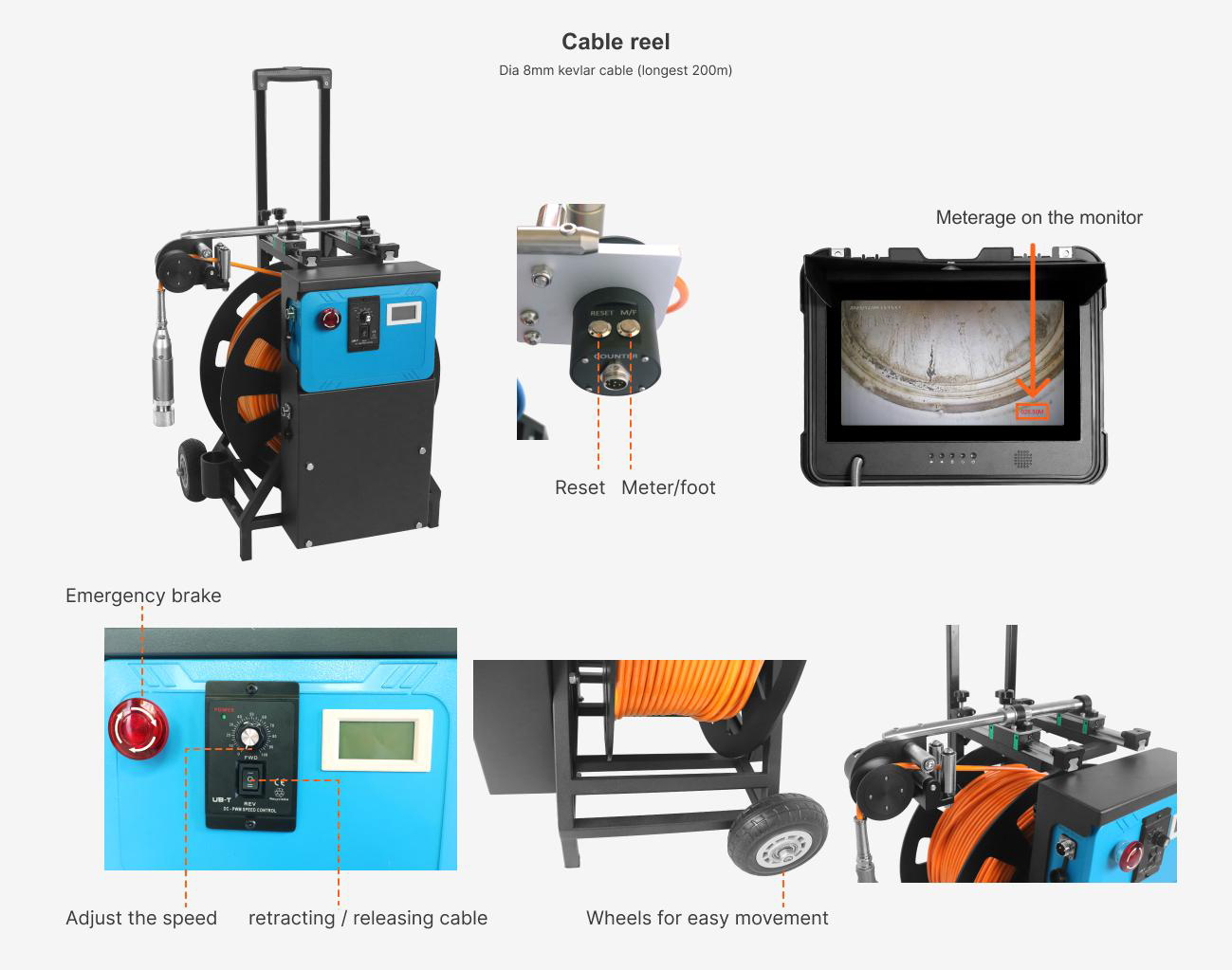

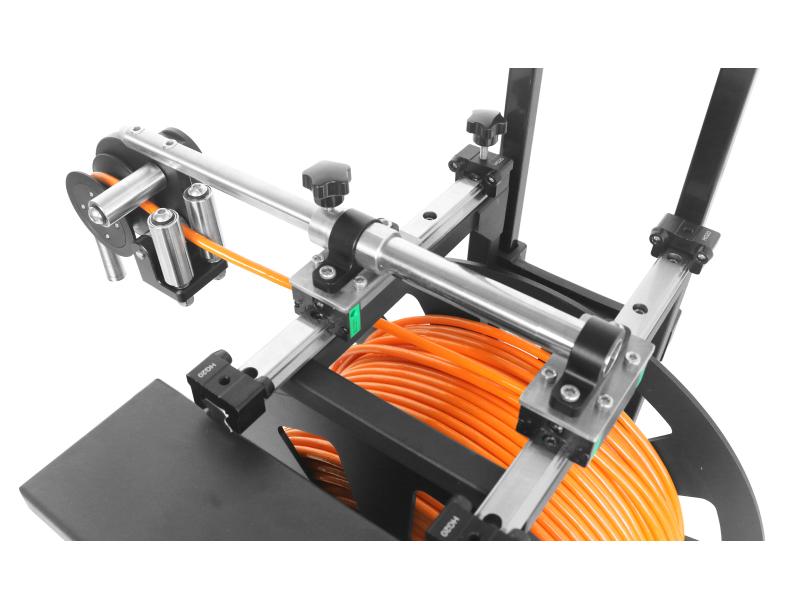

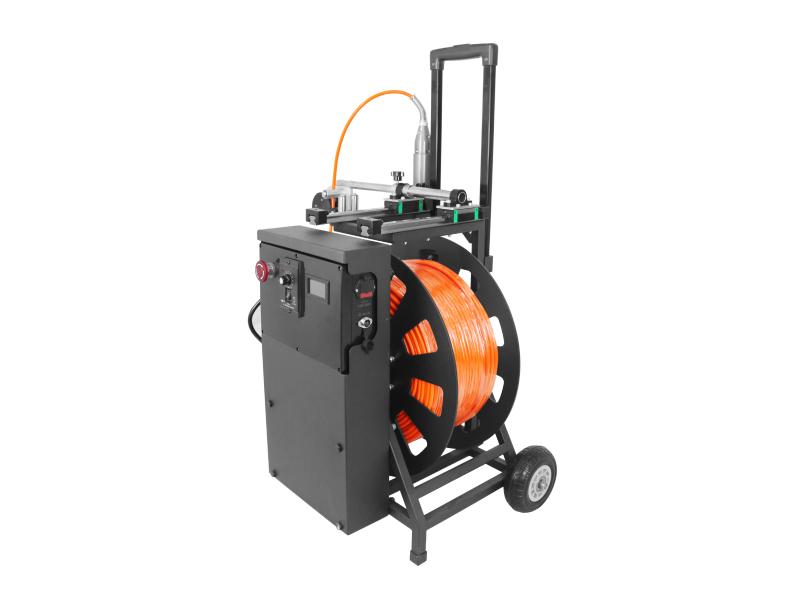

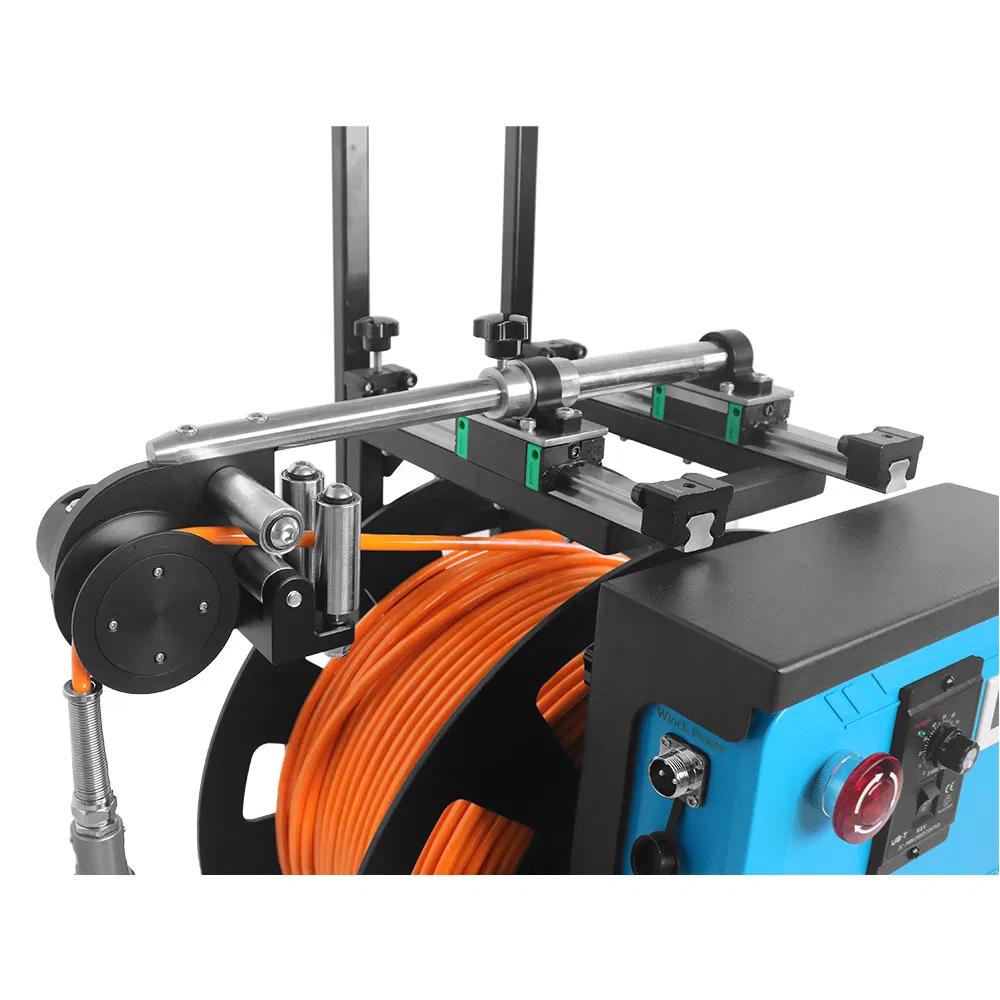

Main Part 3: Electrial Winch Cable reel

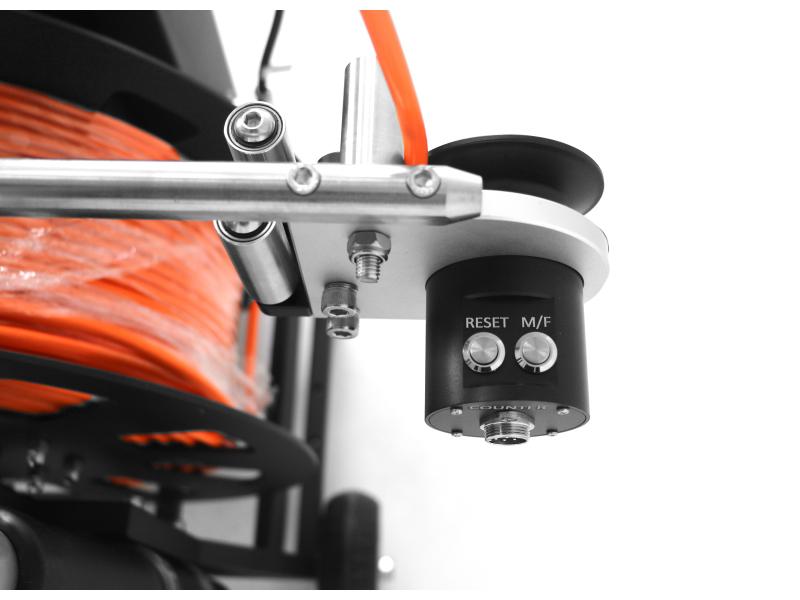

Meter counter:Digital meter counter
Material: Oxygen free copper flexible cable
Cable diameter: 8mm
Cable length : 100m-200m
Electric winding: Adjustable speed
The tripod is an optional accessory .
Very convenient for customers — no need to hold the cable by hand anymore, which makes the work easier and less tiring.
It can be placed on the manhole opening to keep the camera better centered during inspection.
When used properly, the inspection camera can withstand the rough environments found in pipes. Any equipment used in these conditions is subject to damage occurring. You can minimize repairs by treating the camera system as a precision piece of equipment.
The most common required repairs are damaged camera heads (used without a protective skid), damaged flex springs, and damaged pushrod cables (kinked or broken).
Camera Head:

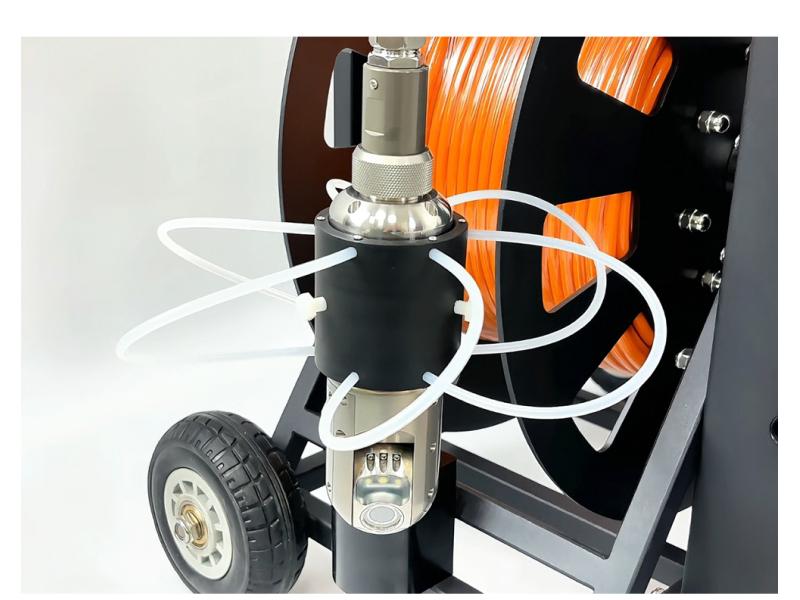

Always use the protective skid. Using the camera without the protective skid will eventually cause camera head failure. Damage occurs more rapidly in pipes with a rough interior surface, such as old cast iron pipes.
Push Cable:
The push cable made of fiberglass, is a smaller diameter (5.2mm) than some competing camera systems. The system design allows more flexibility for turns and bends.
If the camera head has stopped moving, do not force the push rod. If you continue to feed the cable into the pipe, the cable will fold upon itself, and damage will occur. Sometimes the cable will kink or completely shear, and hidden damage may not be discovered until another use.
Camera Head Spring:
Always protect the flexible camera head spring if you have to force the spring past a sharp edge, through tree roots, or on a line restriction. Upon retrieval, the spring might catch and be kinked or stretched. In most cases this will require replacement of the camera head.
Warranty and After-Sales Policy
We provide a ONE YEAR limited warranty for our cameras. Failures due to misuse, abuse, or normal wear and tear are not covered.
1.Immediate Defects: If you encounter any defects in the camera right after receiving it, please capture a video of the issue and send it to us. We'll promptly provide you with a new replacement part at no additional cost.
2.Used Cameras: For cameras that have been in use and later develop issues within the warranty period, we have two options for you:
Option 1: Send us the defective part, and we'll repair it for you under the one-year warranty. There might be a repair fee if new materials are needed for replacement. If no new materials are required, there won’t be a repair fee. Normally, the customer covers the shipping cost to send us the broken part, and we'll return it at our expense.
Option 2: Purchase a new part. We understand that camera systems are utilized in demanding applications and environments, subject to normal wear and tear. Hence, we provide comprehensive instructions in video and PDF formats, along with all the necessary spare parts for daily repairs. Our sewer cameras are designed with modular components, enabling users to easily conduct their own repairs using simple hand tools. All components are plug-and-play and can be readily replaced.
3.If you prefer not to repair it or need an immediate solution, you can also take it to one of our authorized repair centers in Europe/USA to promptly address any issues.
Remarks:
1.Once customers identify the problem, please take some photos/videos and send them to us via email/WhatsApp or other methods.
2.After our technicians review the photos/videos, we will supply: Spare parts and technical help
3.In some situations, if the problem can't be solved by customers themselves, customers can send damaged parts back to us.
4.To save shipping costs, we suggest you order some extra parts for future use and send back all faulty parts at one time.
