Key Features:

• 1080P Full HD Stainless steel camera head, IP68 waterproof level

• Sapphire glass lens cover, 15pcs high light white LEDs

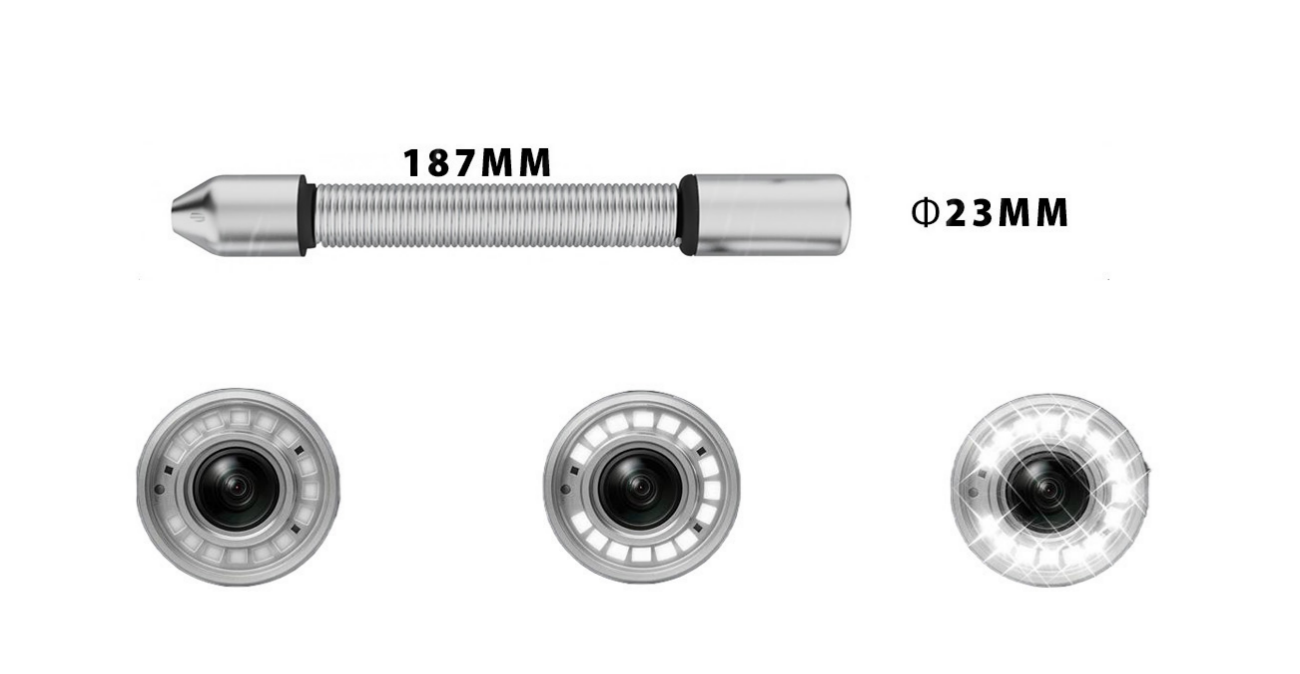

• Diameter of camera: 23 mm

• Two plastic guides for camera head, Φ46mm & 80mm

• 10.1” or 13.3'' LCD color monitor, with image rotate button

• SD/U-disk recording

• One push record button

• LED brightness control buttons

• With microphone for local audio recording

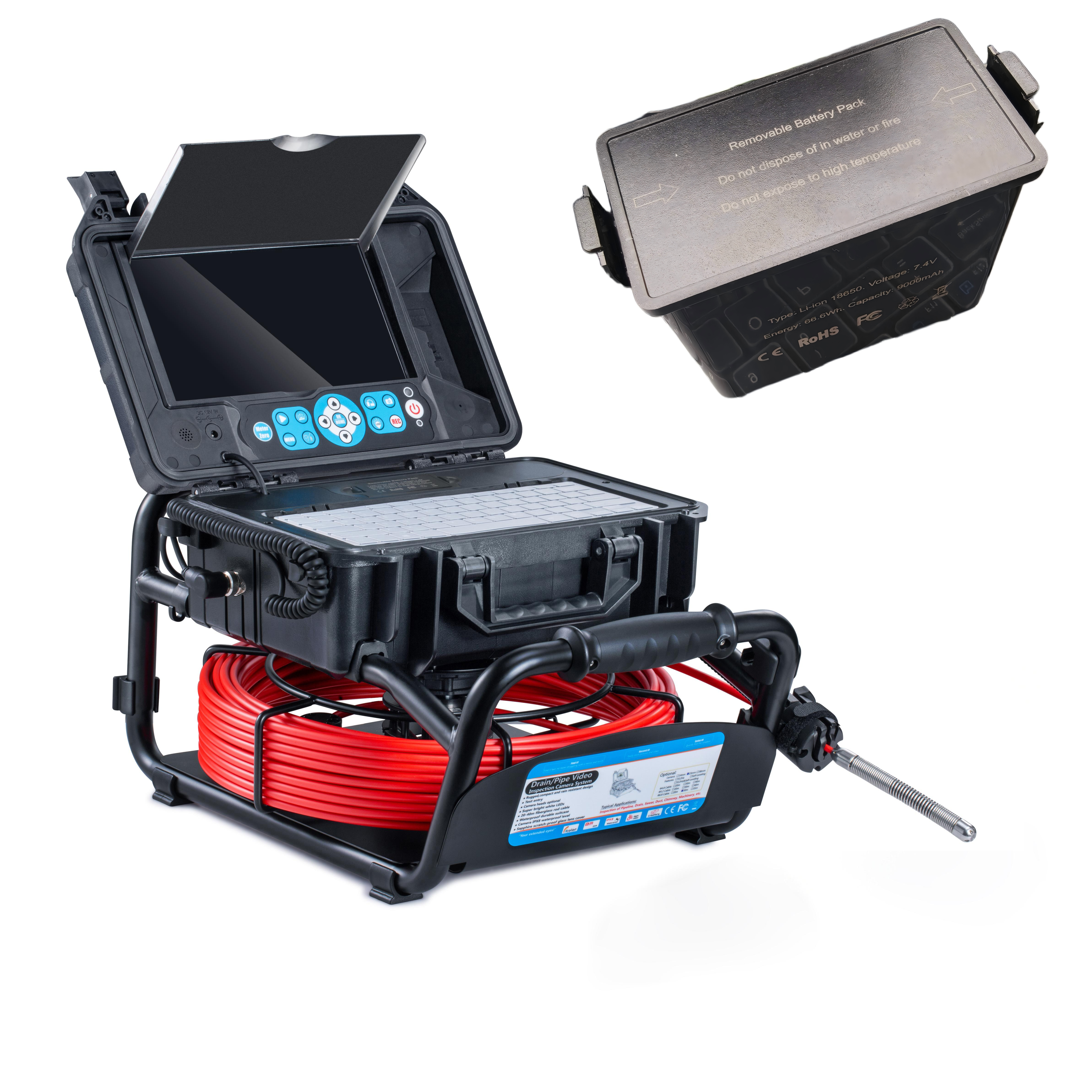

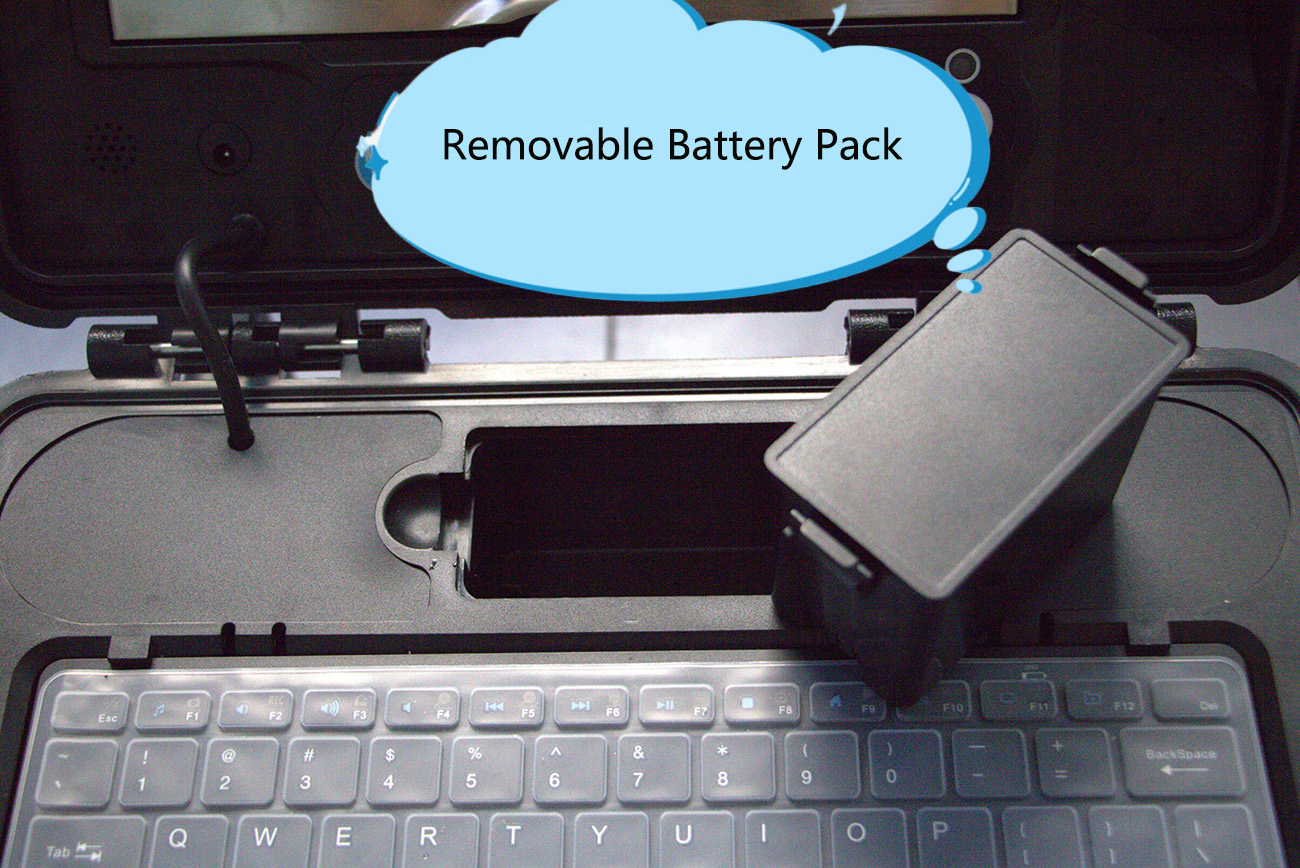

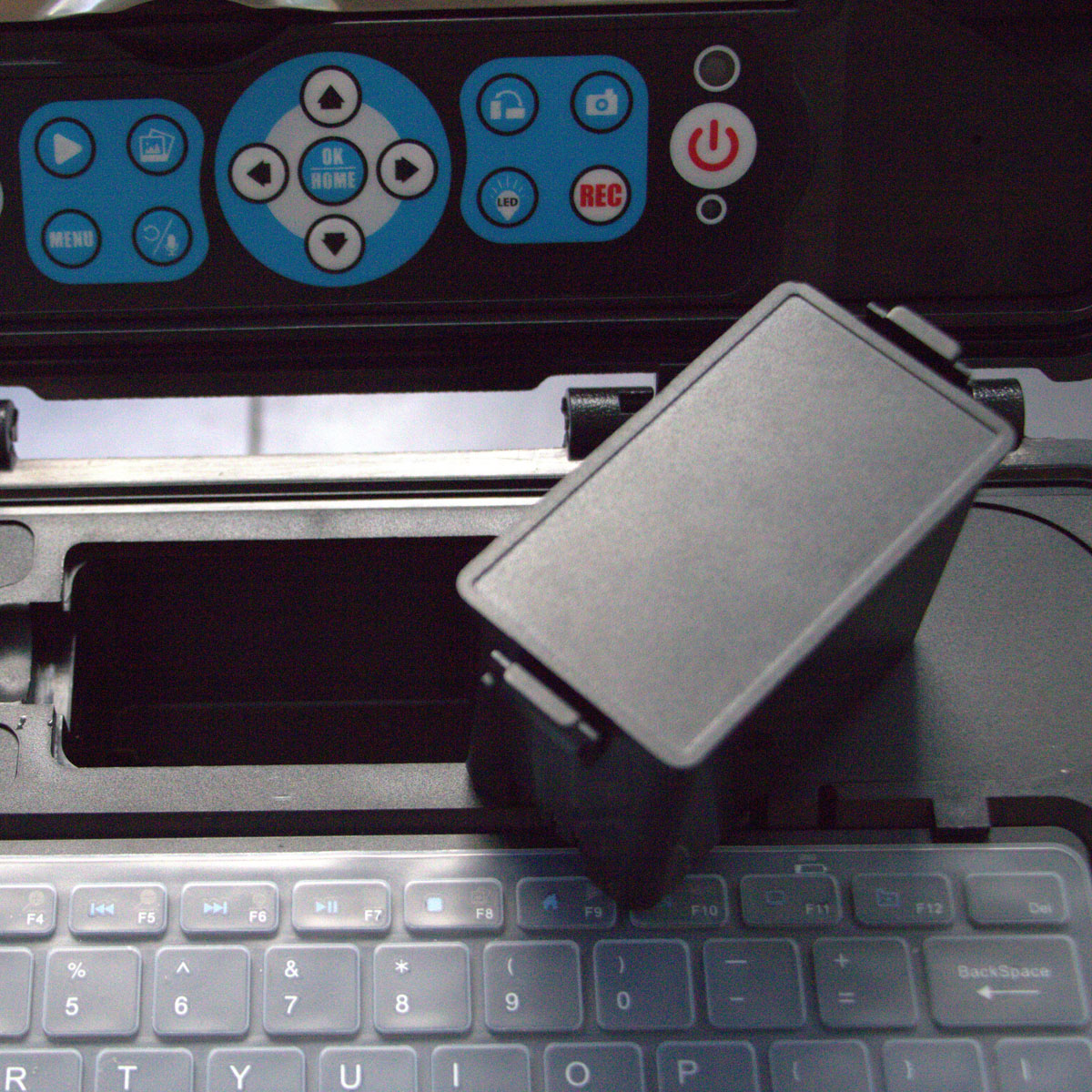

• Rechargeable removable battery with up to 8 hours of operation; optional backpack for easy transport

• On-Screen date and time

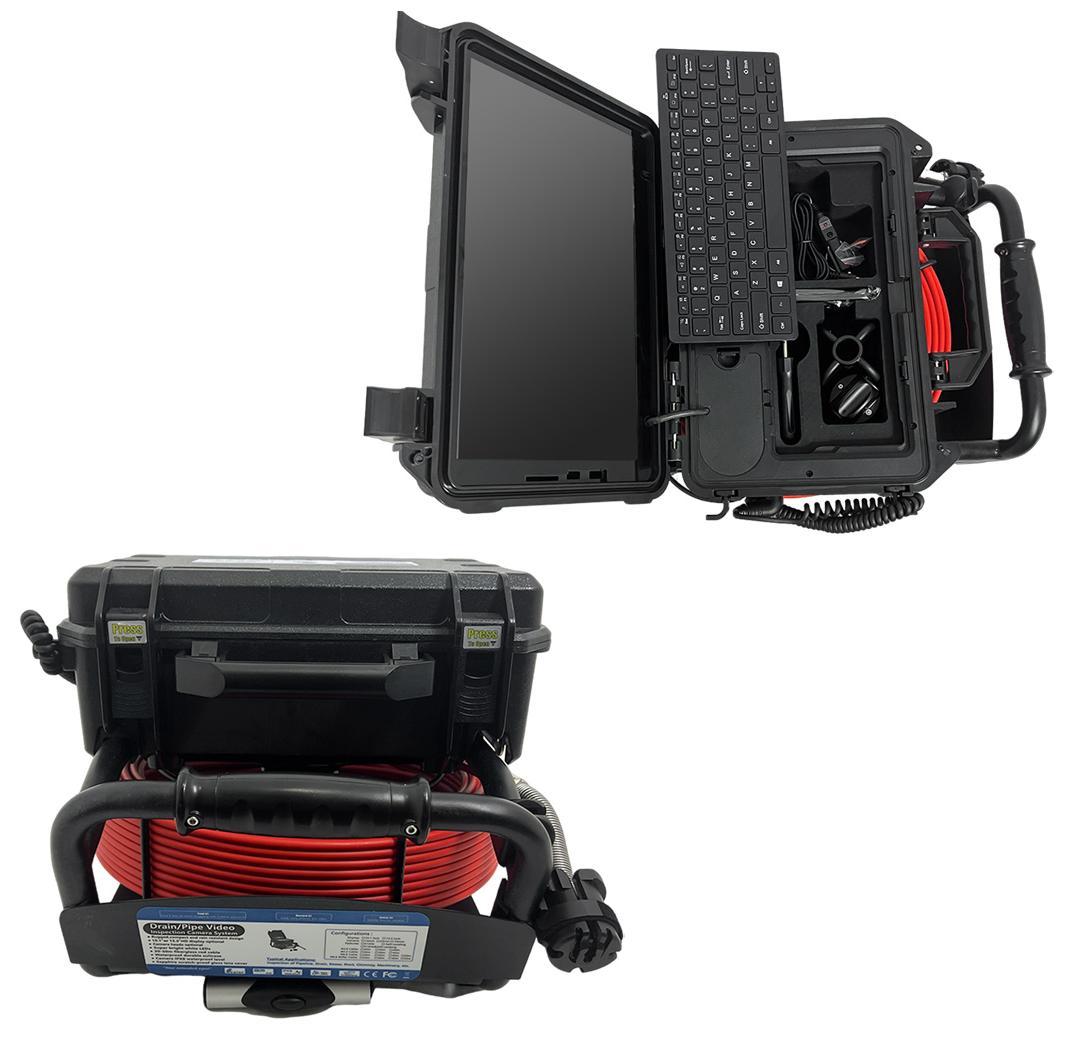

• Multifunction keyboard for English text input and system control

• Audio & video functions: microphone for local recording, built-in speaker, mute/unmute recording, and 20x digital zoom

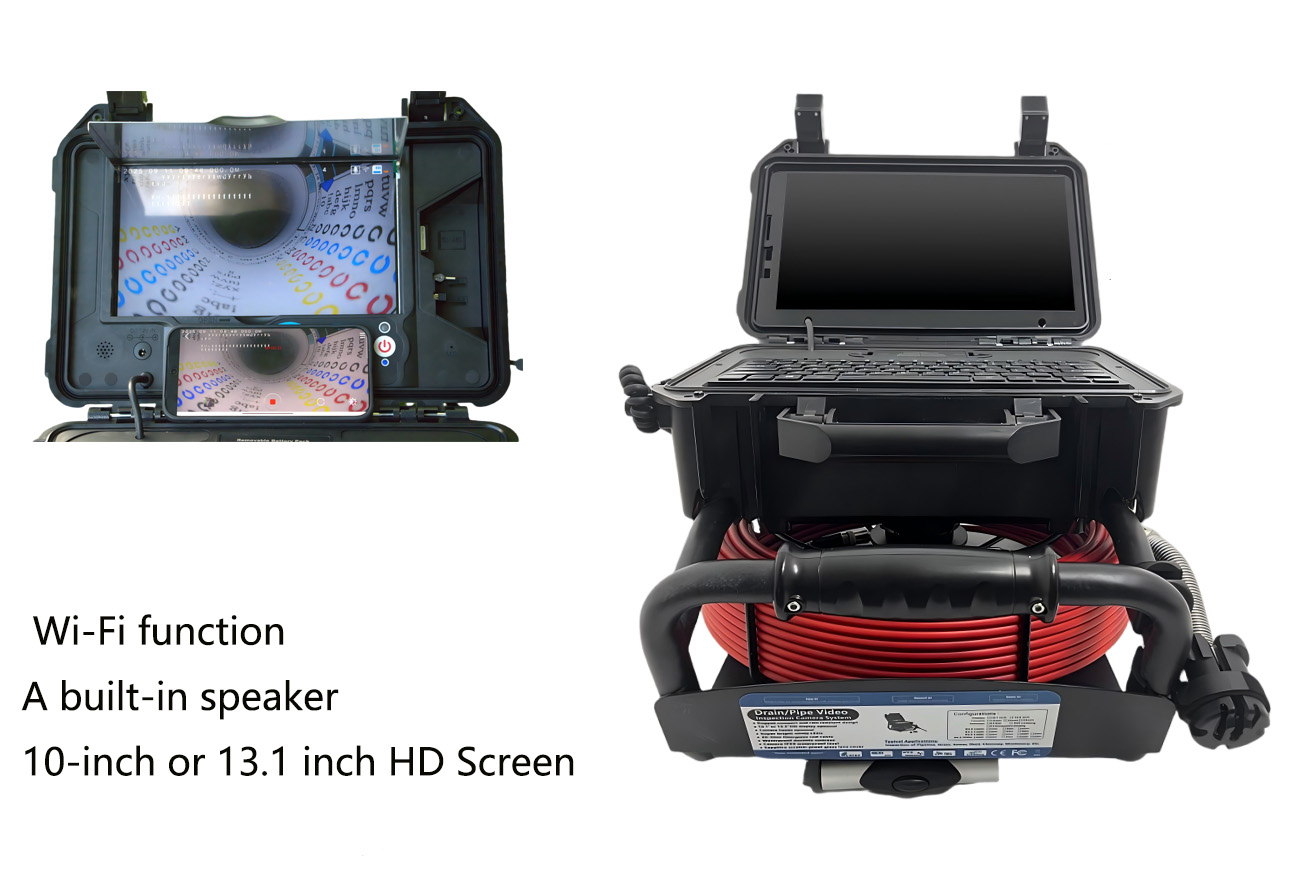

• Wi-Fi connectivity for image sharing

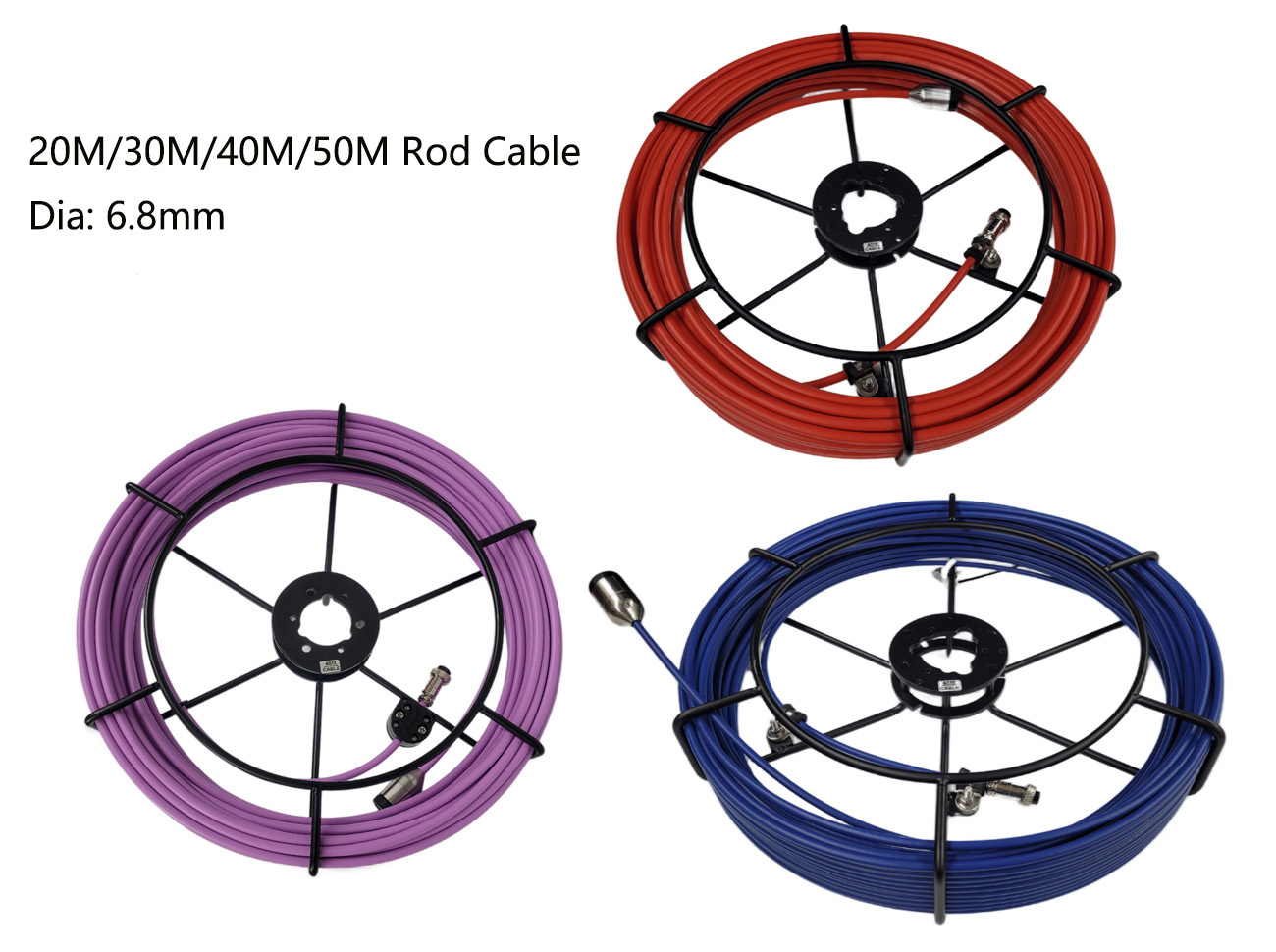

• 20, 30 or 40m /50m fiberglass φ6.8mm

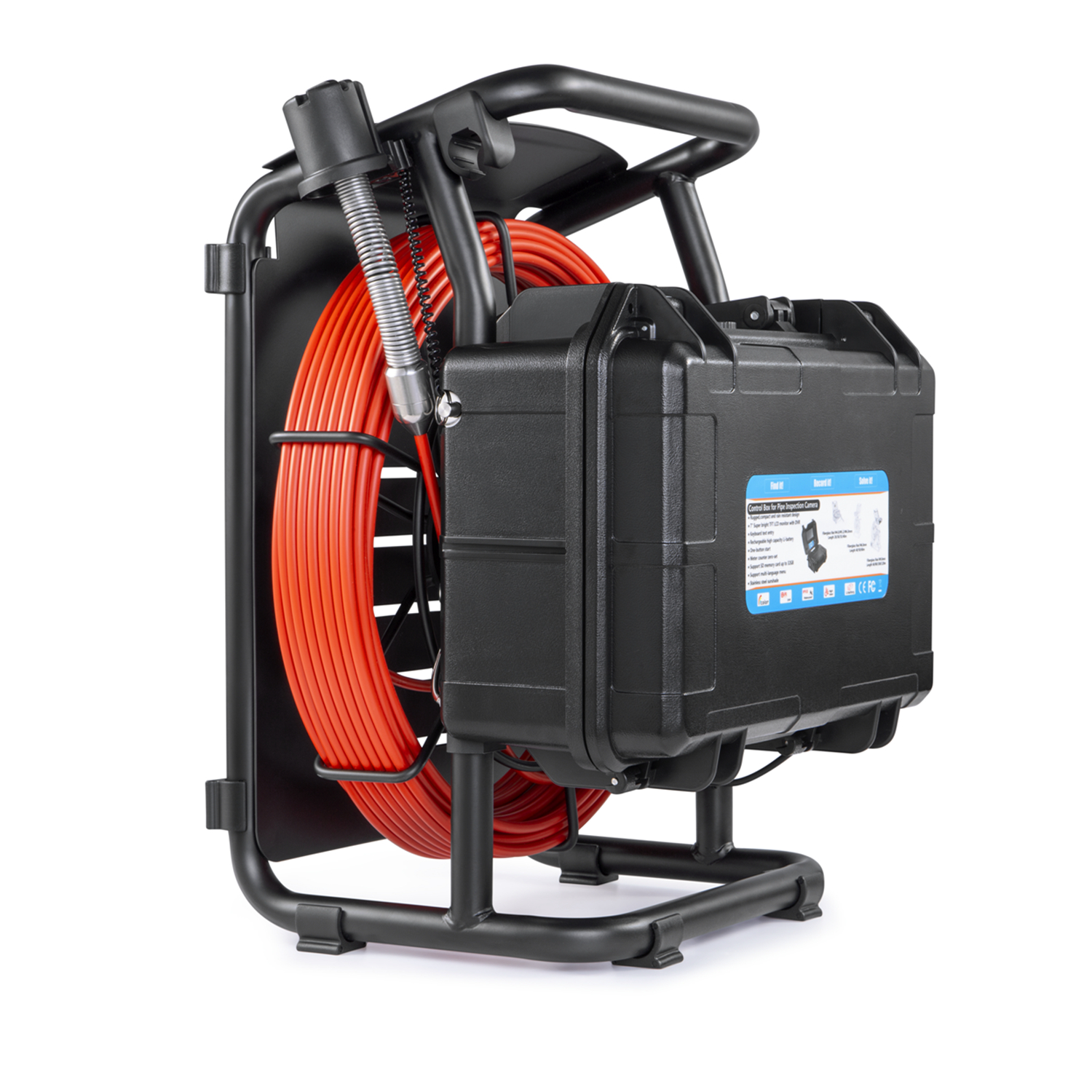

• Rugged waterproof system design, external cable reel for easy cleaning and maintenance

• Ability to go through 90°bends in Φ52mm pipes

• With smart braking system

• With on-screen distance counter

• With Keyboard for text input (English)

• Whole system waterproof (box closed)

   Optional Features:

• Built-in 512hz sonde

• Self-leveling function

• 13.3" LCD screen

• 10.1" LCD screen

•  38mm head

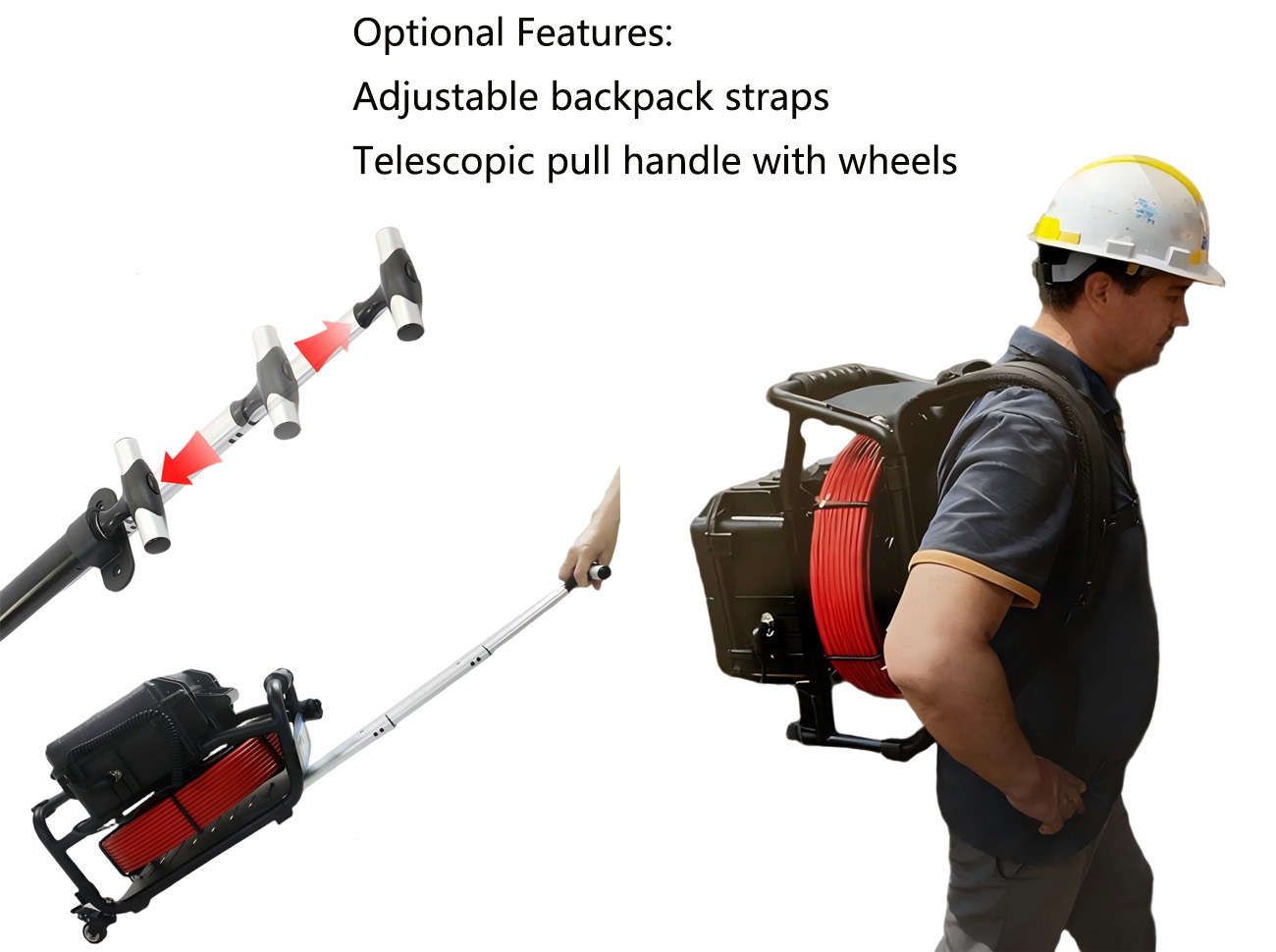

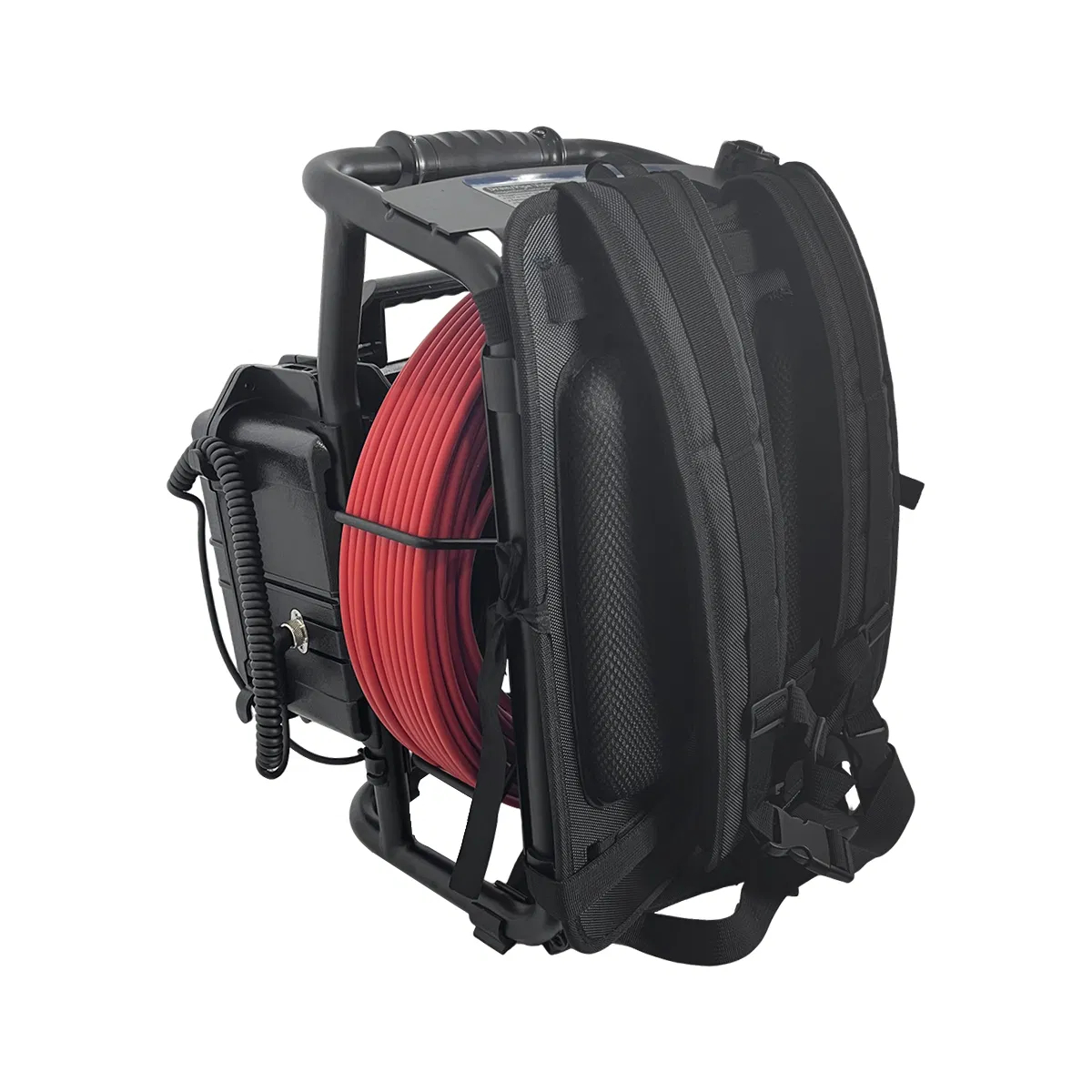

• Backpack  straps

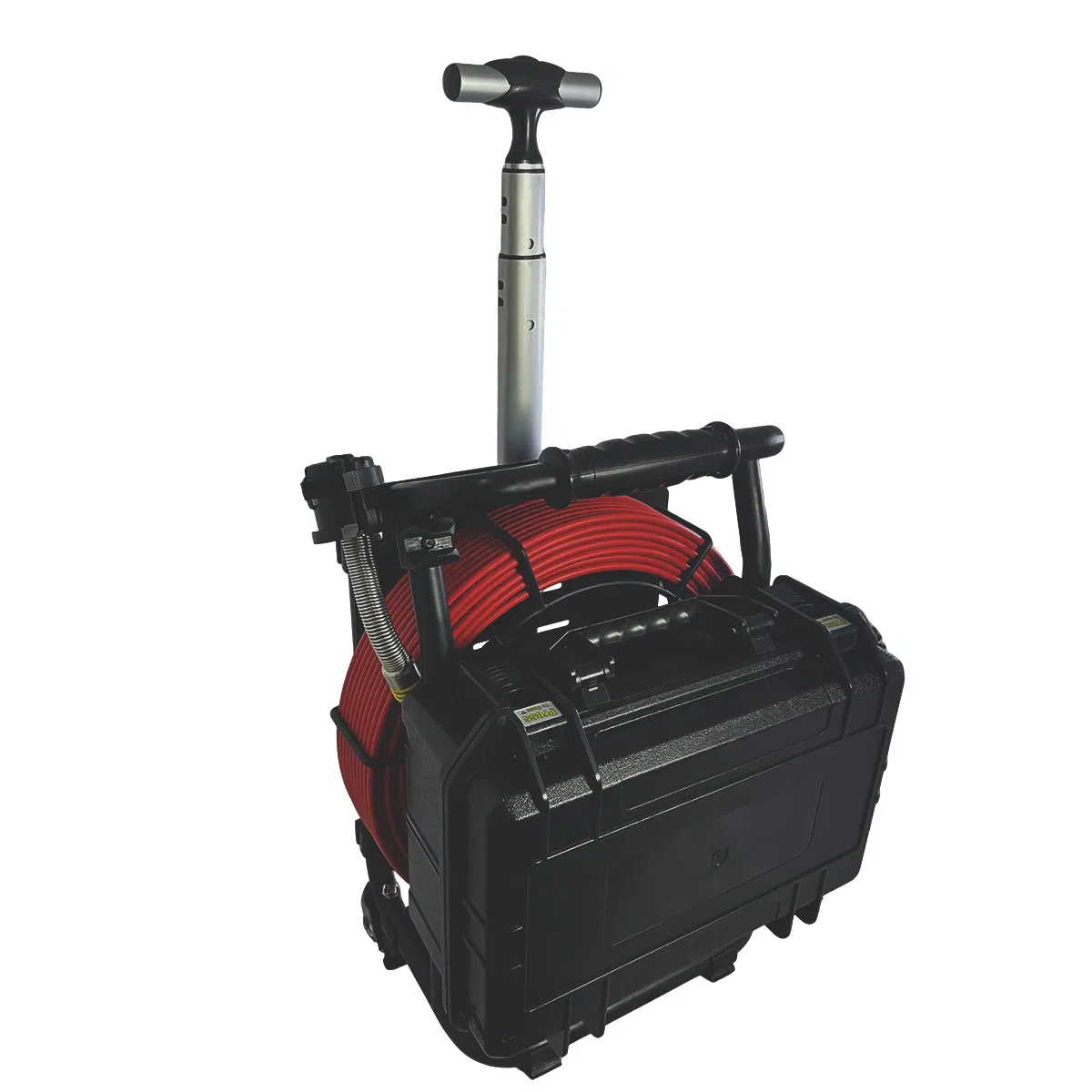

• Telescopic pull handle and wheels

• Stiffer cable




Warranty and After-Sales Policy

We provide a ONE YEAR limited warranty for our cameras. Failures due to misuse, abuse, or normal wear and tear are not covered.

1.Immediate Defects: If you encounter any defects in the camera right after receiving it, please capture a video of the issue and send it to us. We'll promptly provide you with a new replacement part at no additional cost.

2.Used Cameras: For cameras that have been in use and later develop issues within the warranty period, we have two options for you:

Option 1: Send us the defective part, and we'll repair it for you under the one-year warranty. There might be a repair fee if new materials are needed for replacement. If no new materials are required, there won’t be a repair fee.

Option 2: Purchase a new part. We understand that camera systems are utilized in demanding applications and environments, subject to normal wear and tear. Hence, we provide comprehensive instructions in video and PDF formats, along with all the necessary spare parts for daily repairs. Our sewer cameras are designed with modular components, enabling users to easily conduct their own repairs using simple hand tools. All components are plug-and-play and can be readily replaced.

3.If you prefer not to repair it or need an immediate solution, you can also take it to one of our authorized repair centers in Europe/USA to promptly address any issues.

Remarks:

1.Once customers identify the problem, please take some photos/videos and send them to us via email/WhatsApp or other methods.

2.After our technicians review the photos/videos, we will supply: Spare parts and technical help

3.In some situations, if the problem can't be solved by customers themselves, customers can send damaged parts back to us.

4.To save shipping costs, we suggest you order some extra parts for future use and send back all faulty parts at one time.

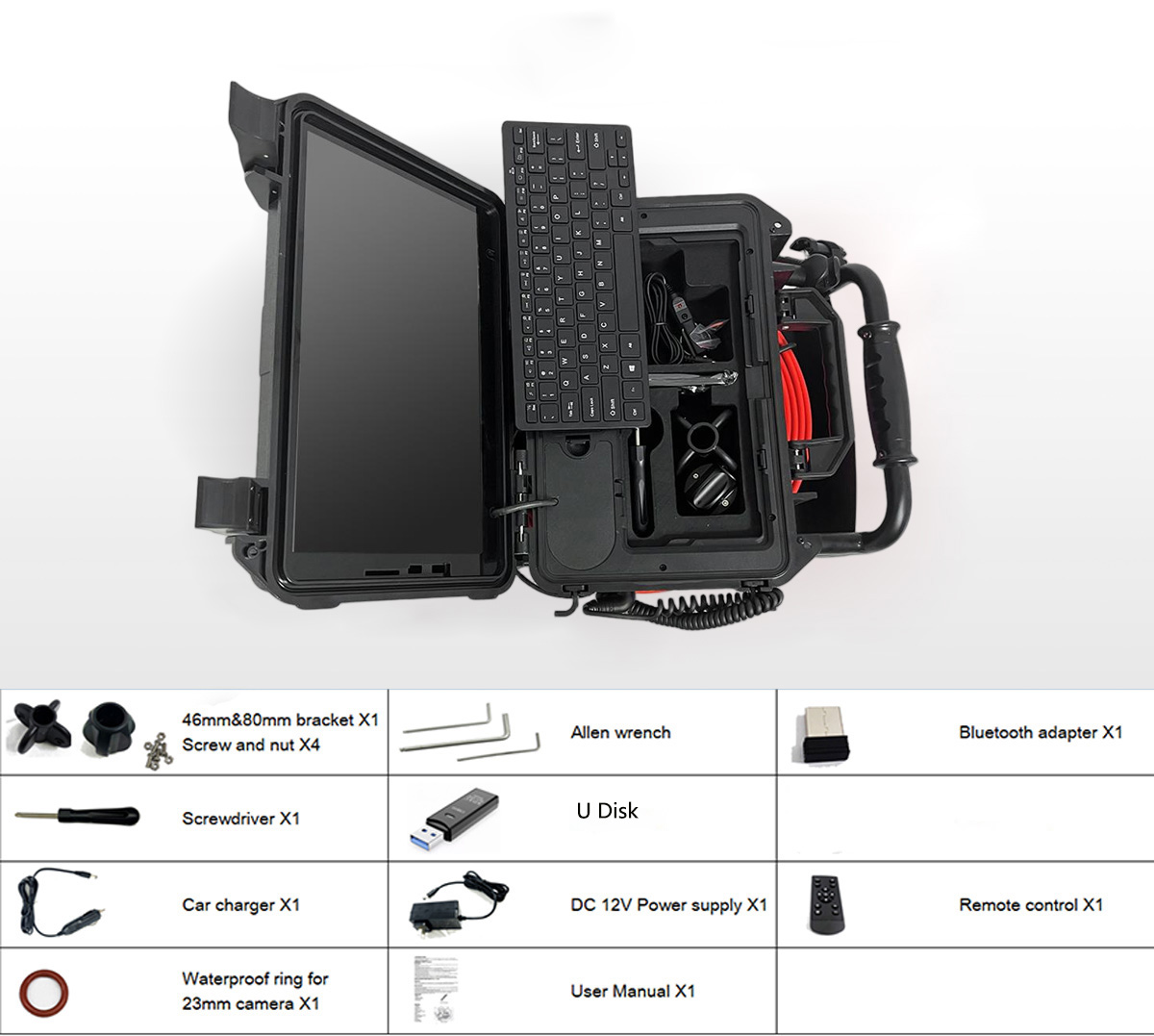

What's Included:

• 1 x 23mm Camera head

• 1 x 20/30/40m/50m cable wheel

• 2 x Plastic guides(dia.80mm and dia.46mm)

• 1 x remote control

• 1 x screw driver

• 1 x power adapter

• 1 x car charger

• 1 x connection cable

• 1 x Screws and camera head waterproof seal

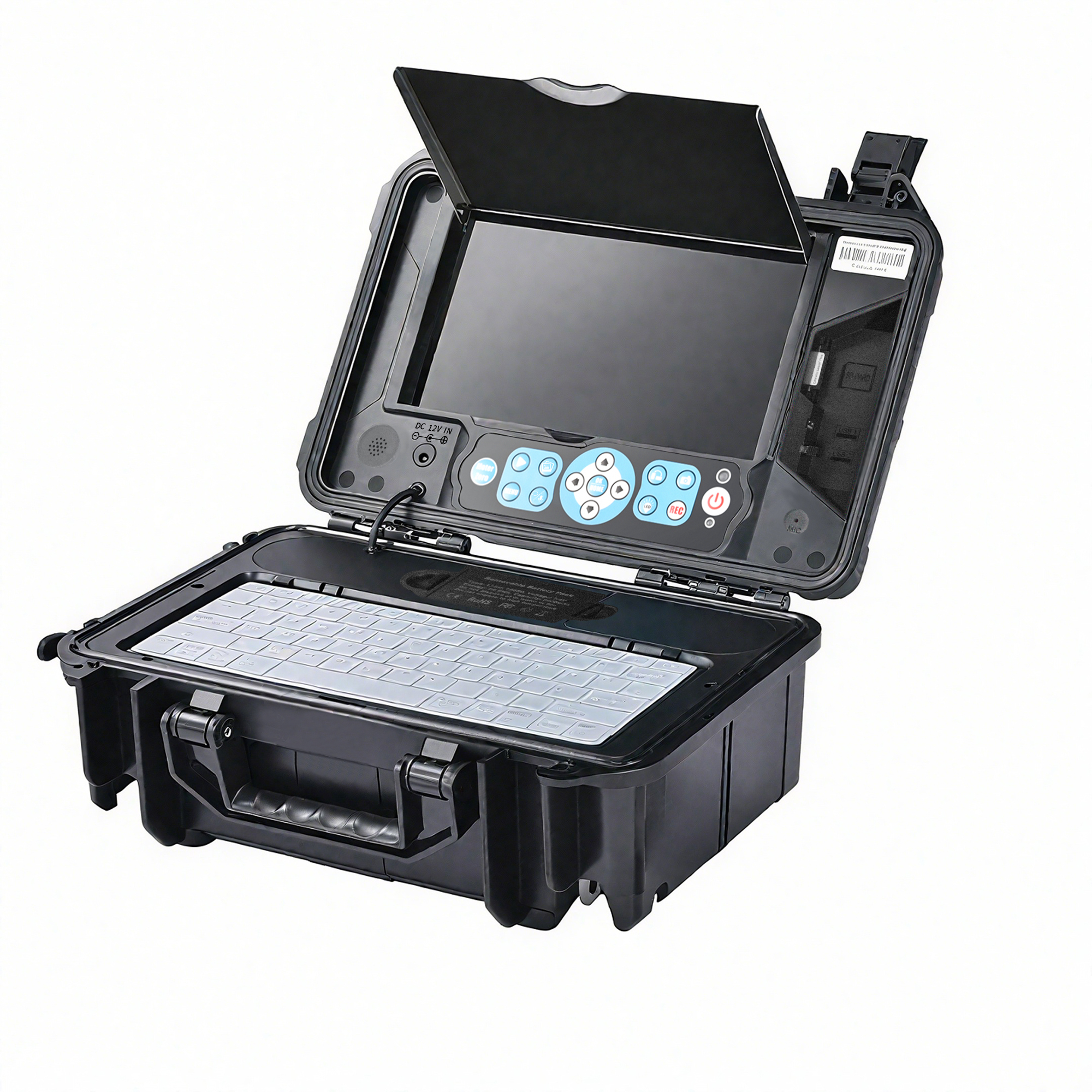

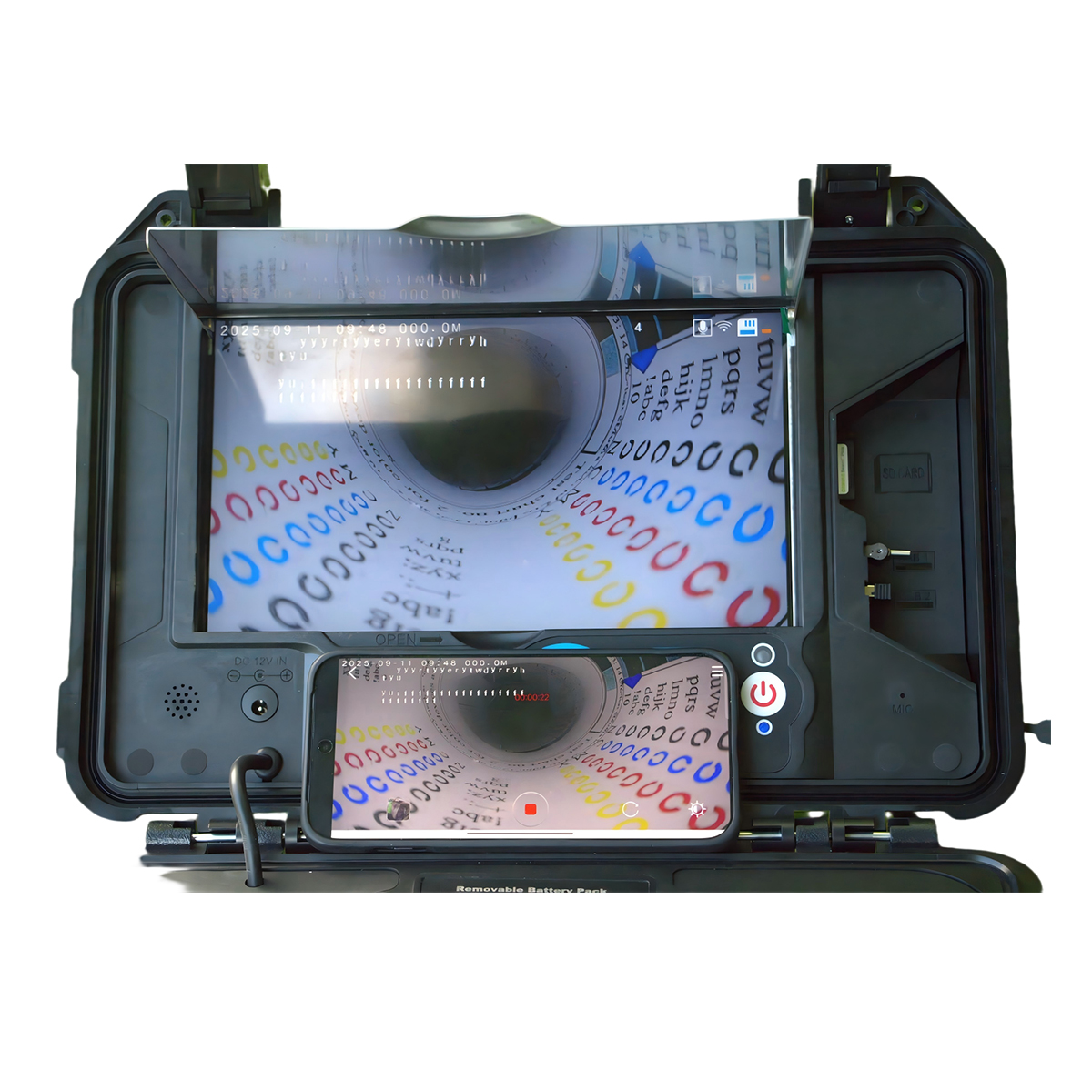

• 1 x waterproof control box with monitor mounted
