Pipe Inspection Camera Ø38mmØ/23mm Camera Head 60m Ø6.8mm Pushrod
This efficient 38 mm / 23 mm camera head with a built-in 512 Hz sonde is paired with a rigid 40–60 m (130–200 ft) push cable, making it ideal for longer-distance inspections with minimal cable “snaking” inside the pipe.

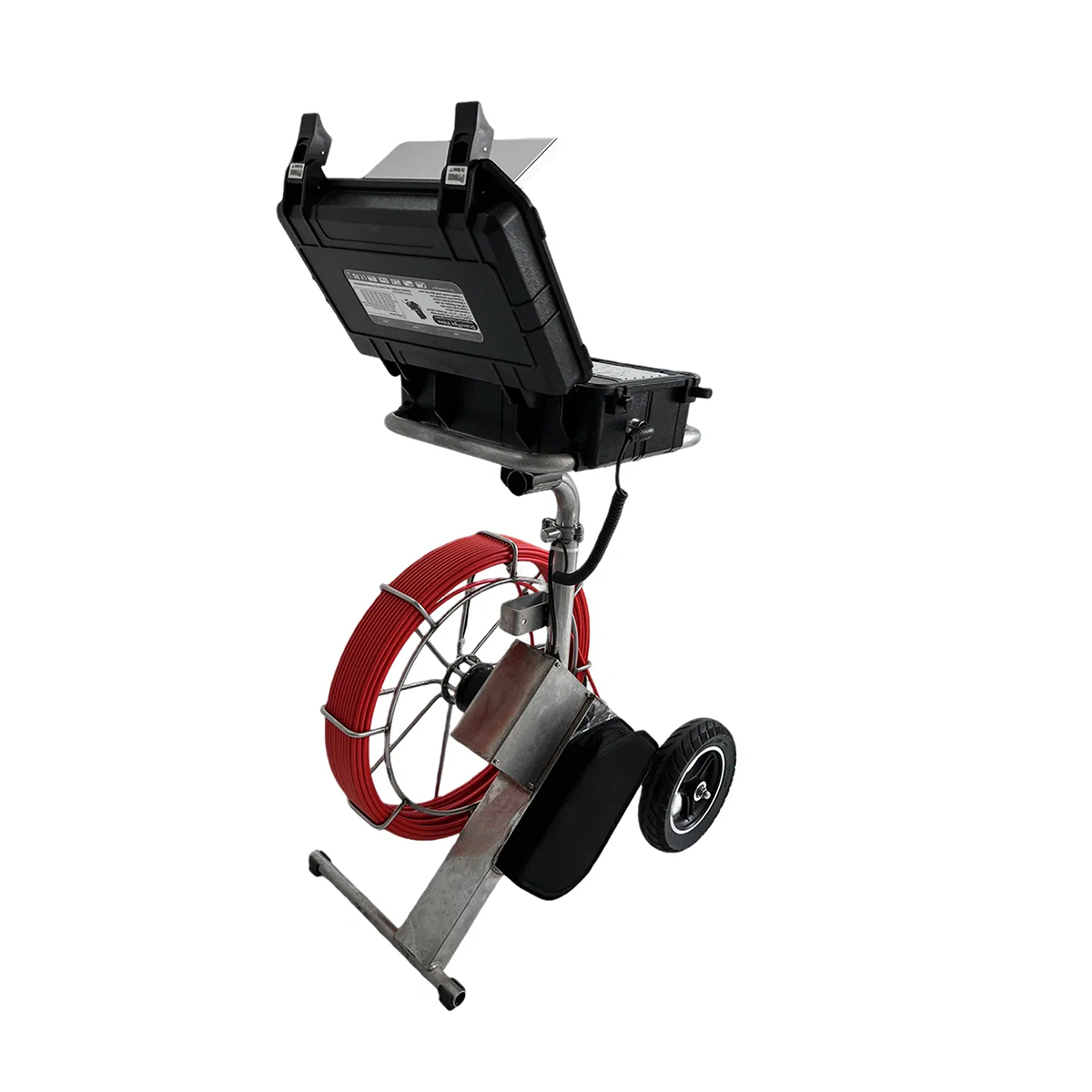

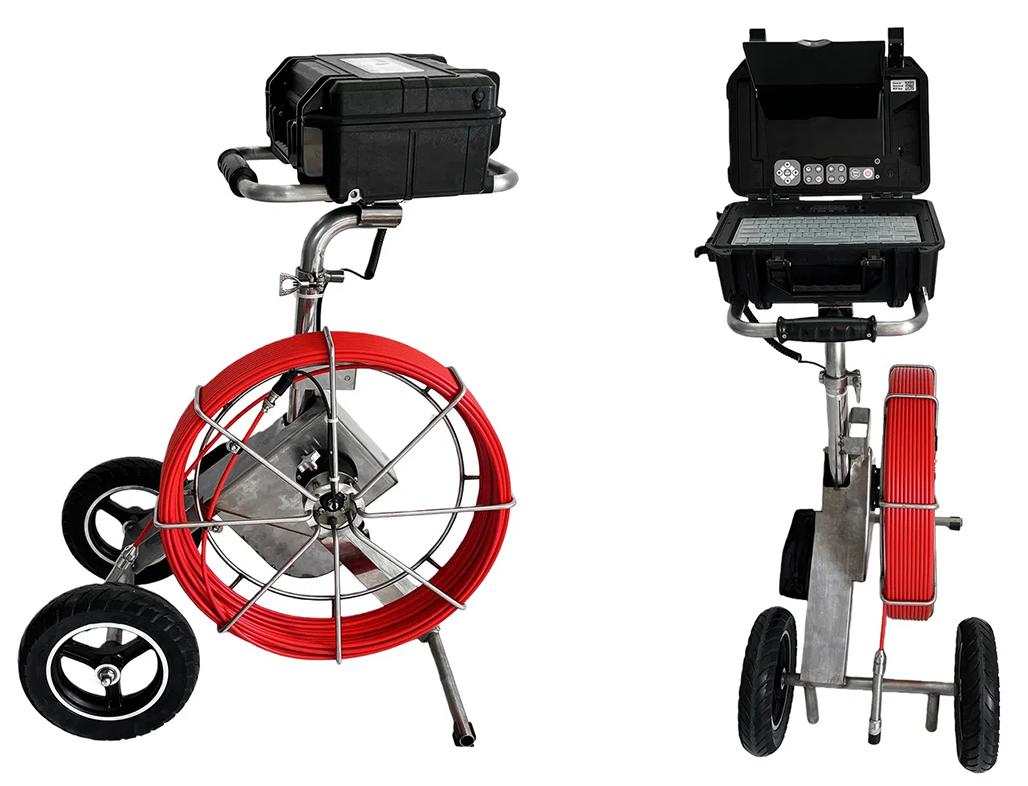

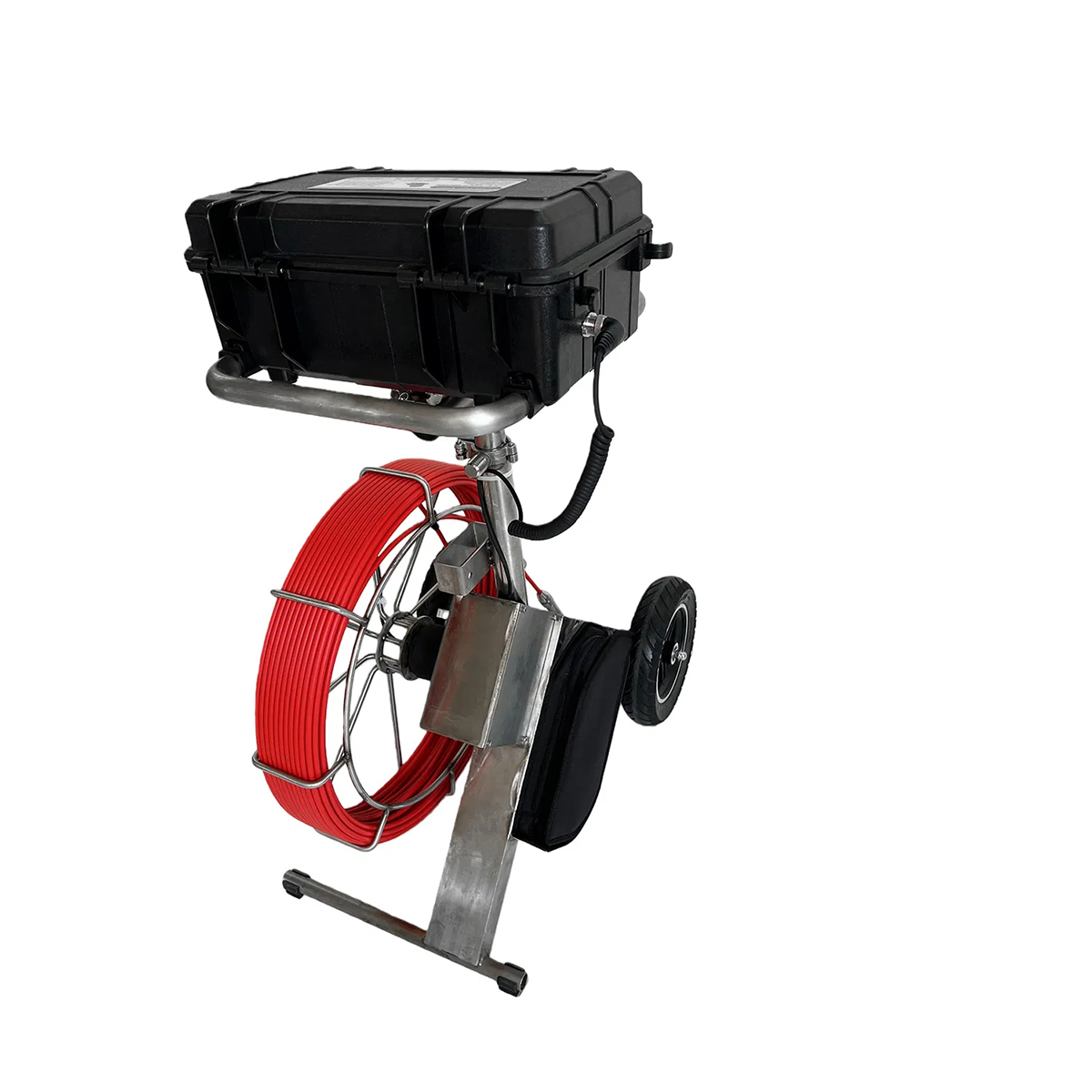

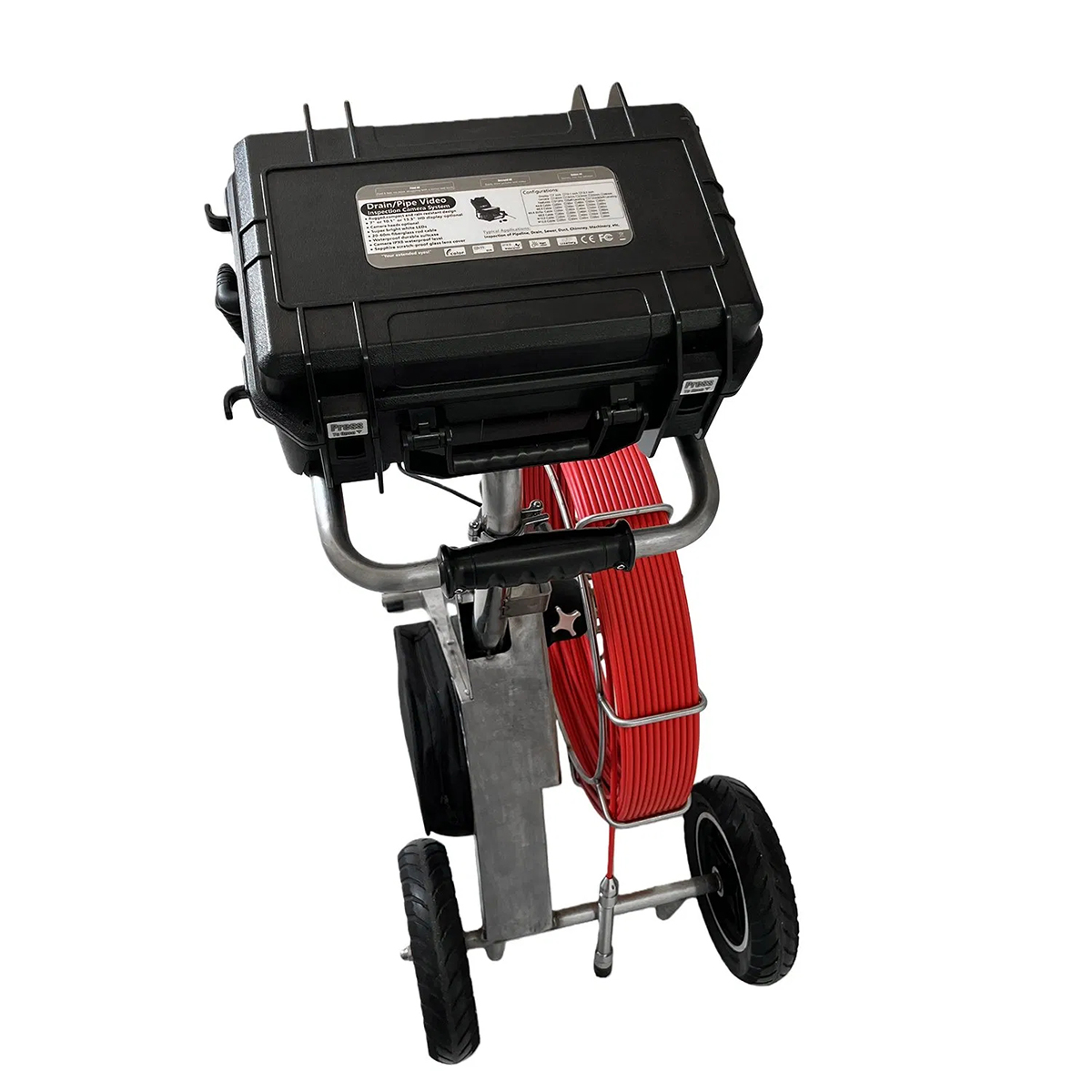

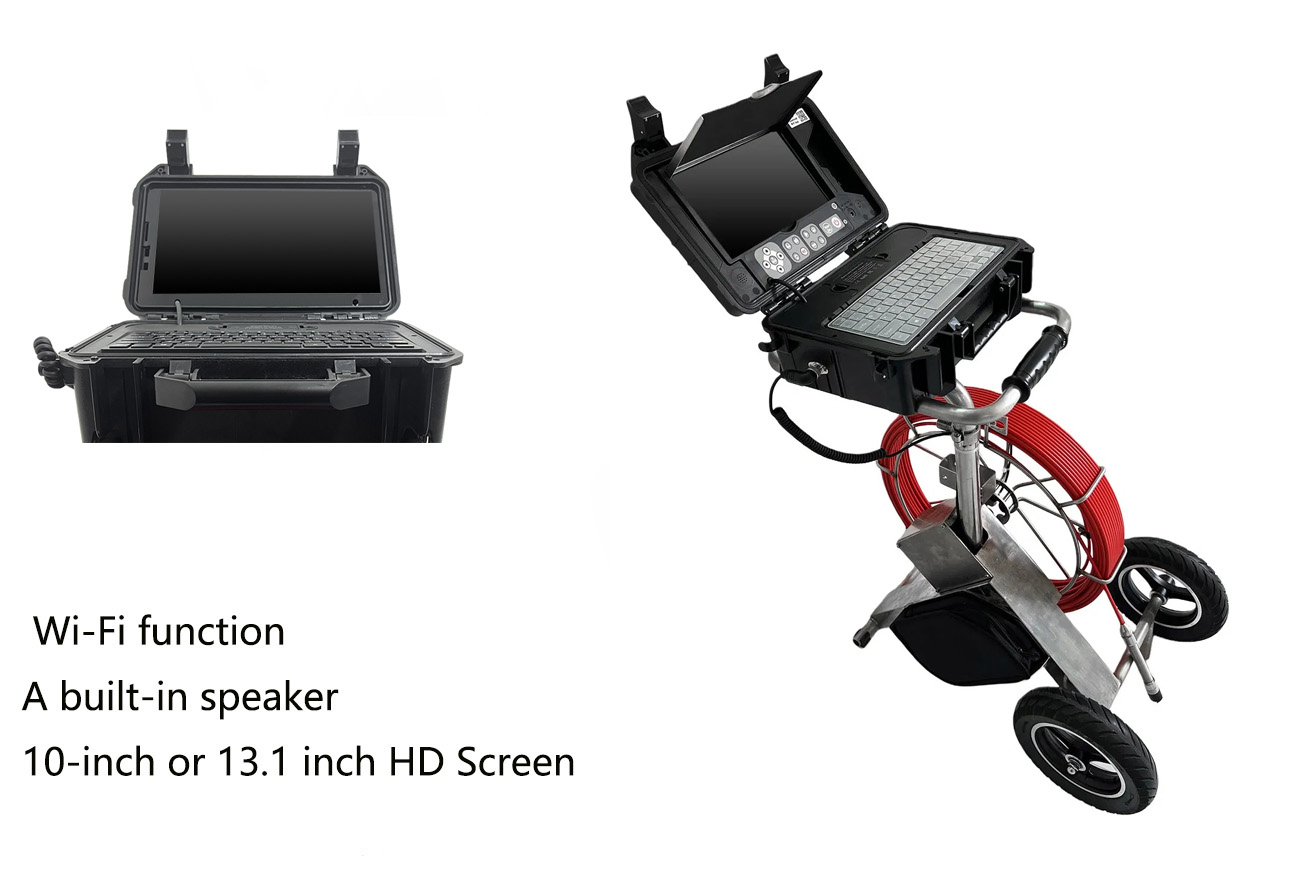

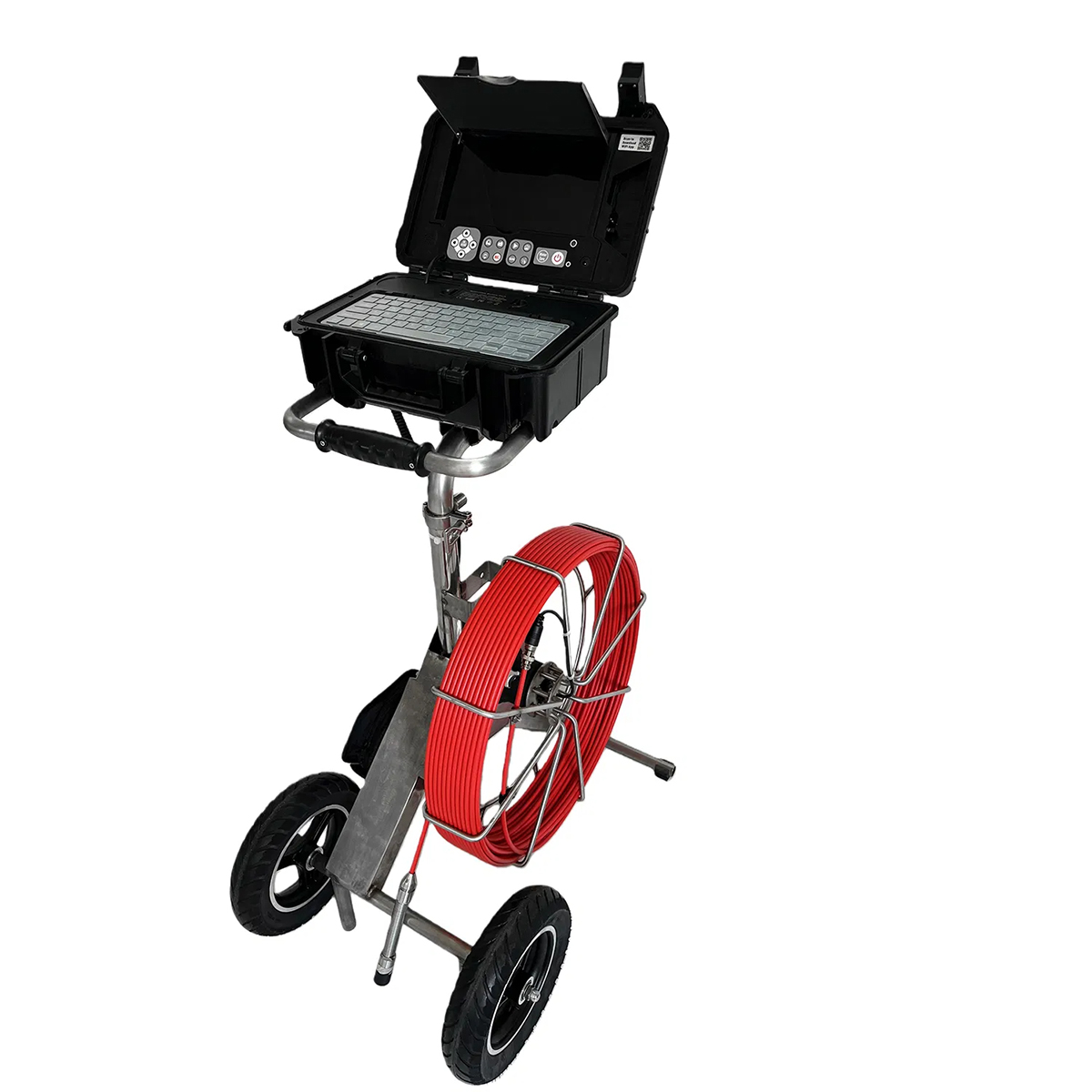

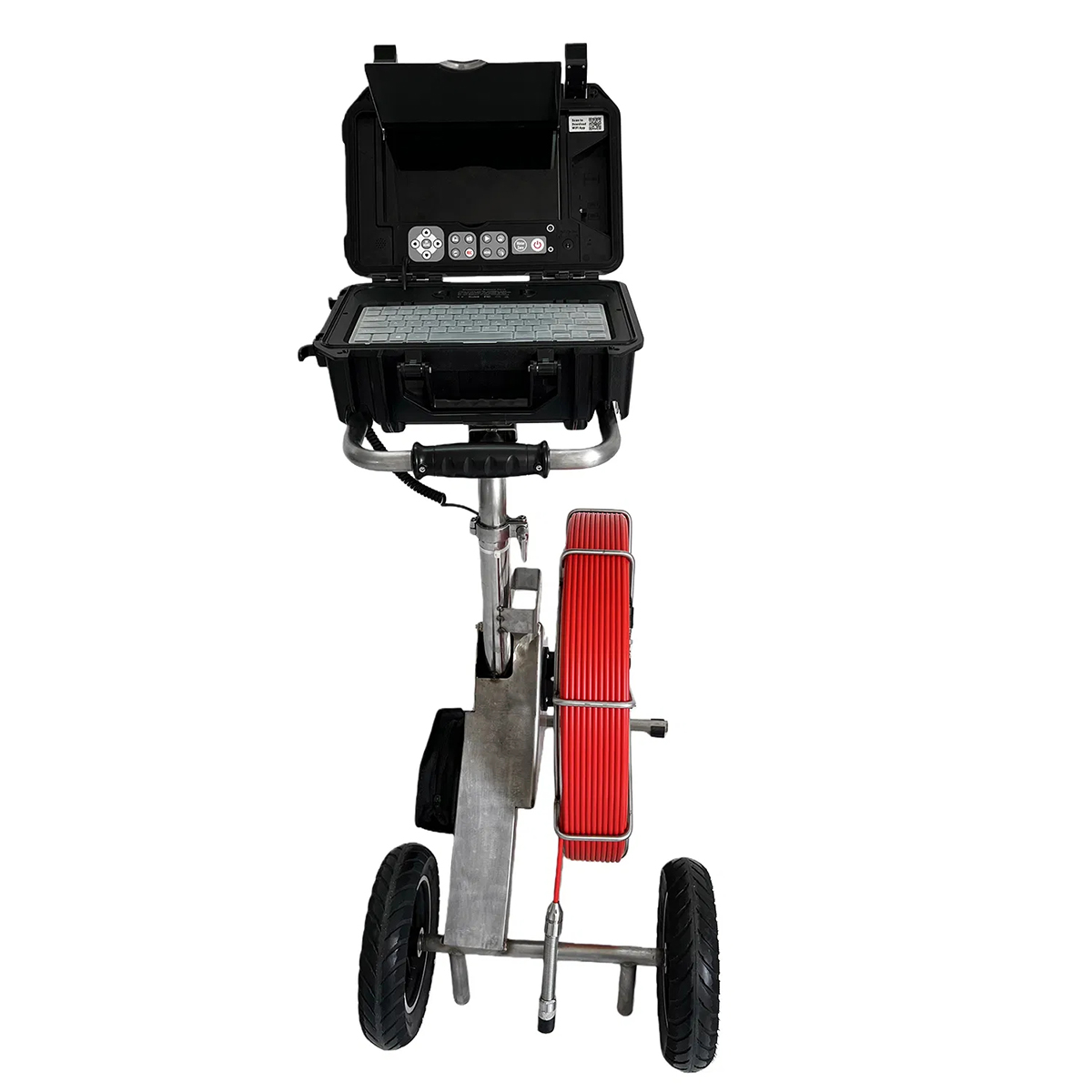

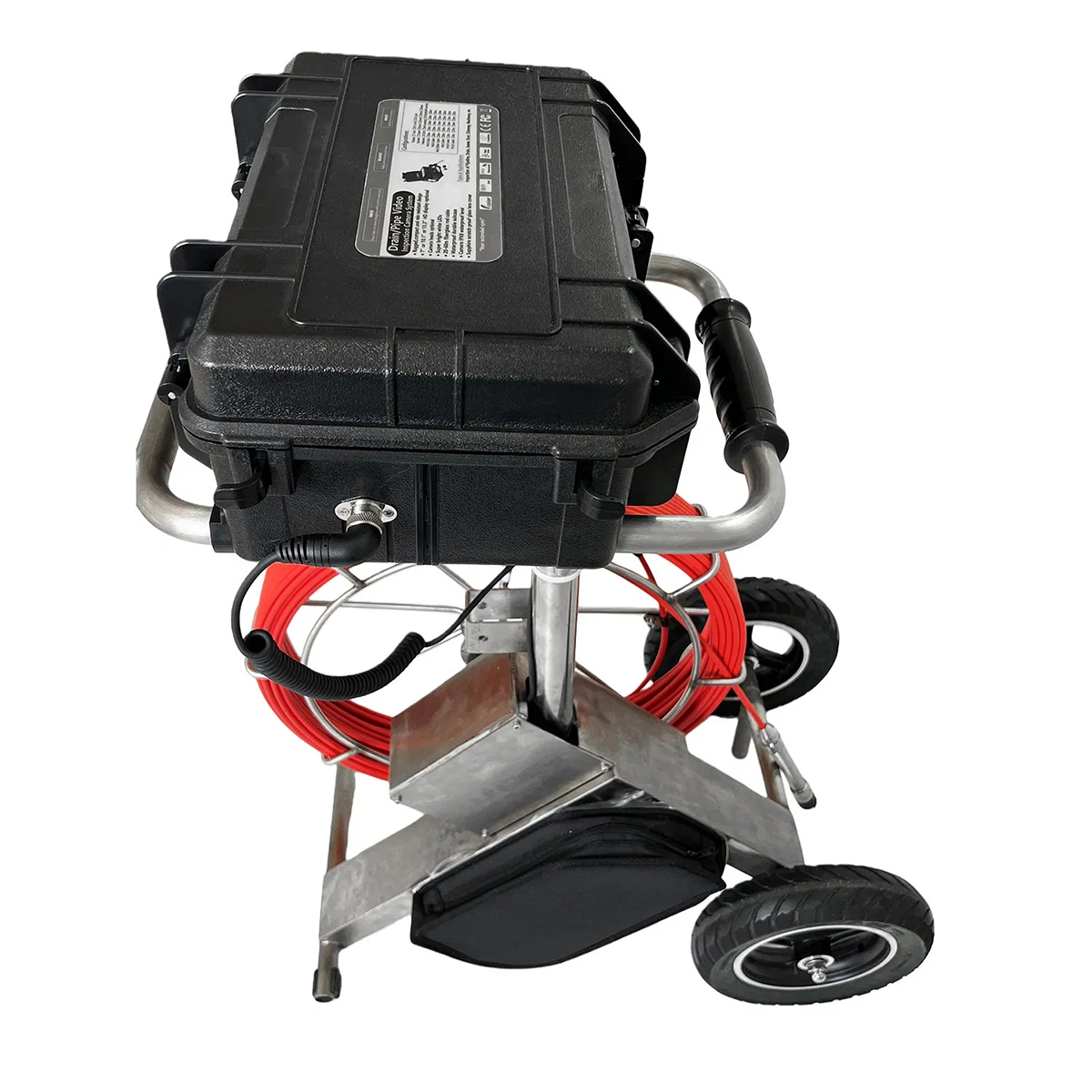

Designed for most plumbing applications, the system features an open-reel camera design for easy transport, a waterproof carry case, and a 10" or 13.3" display with one-touch video recording and screen capture, an on-screen distance counter, and a detachable control box.
The system is suitable for inspecting DN50–300 mm (4–12 inch) pipes and can easily navigate 90° bends in Φ120 mm pipes. Key features include a removable battery, multifunction keyboard, Wi-Fi function, video recording with mute/unmute option, 1080P Full HD image quality, 20× digital zoom, and a built-in speaker.
- Videos
- Key Features
- Specifications
- What to Expect
- Warranty
- Spare parts

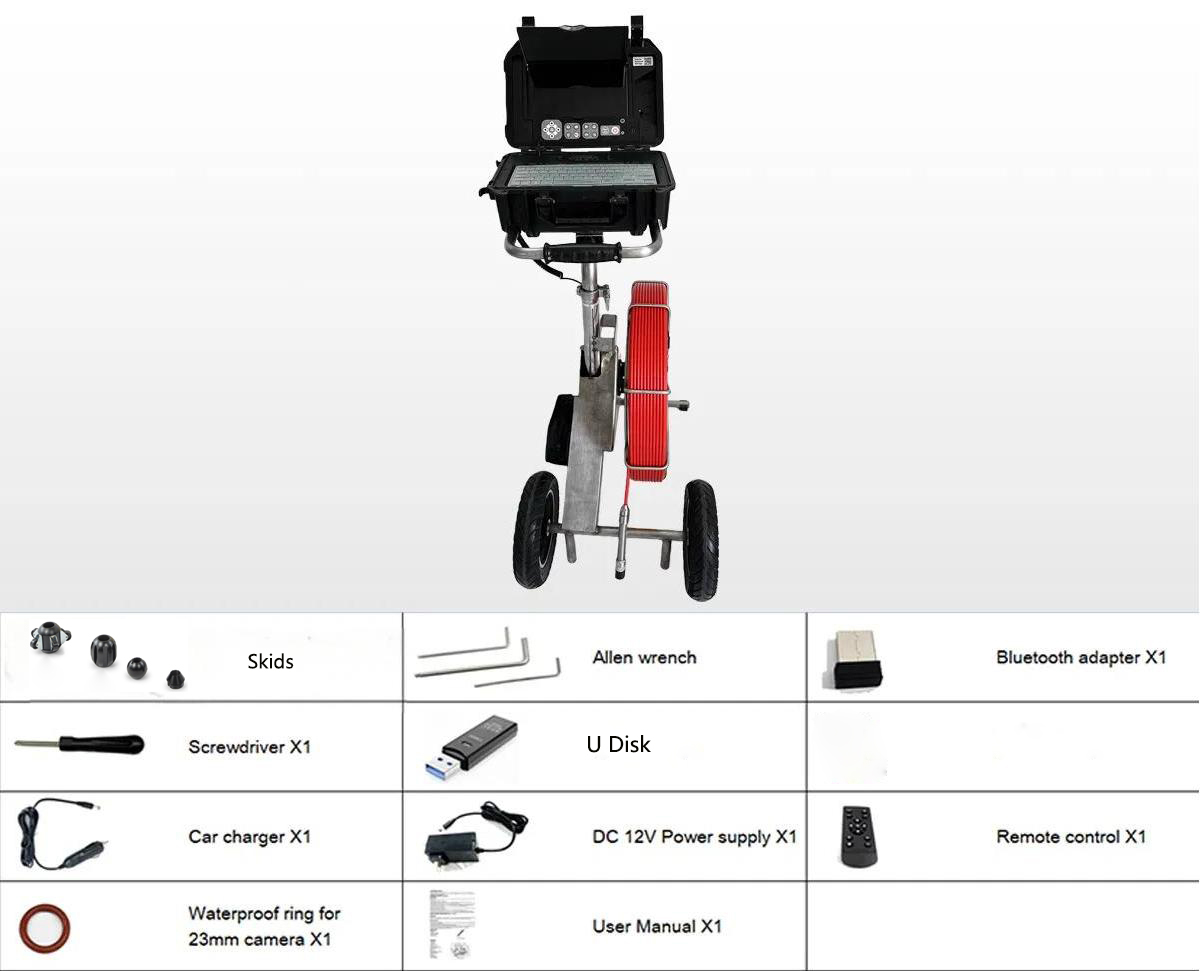

- What's Included
- Documents Download
1/3" CMOS, 120°wide vision angle, 480 TV Lines
Camera Size: Φ38mm×81mm（main body）
Two roller skids
Sapphire glass lens cover
Diameter of camera:38mm, Focus Distance 12cm (approx)
Water proof level, 20m underwater (camera fix on cable)
Push cable dia. 6.8mm
10.1” or 13.3'' LCD color monitor, with image rotate button
SD/U-disk recording
One push record button LED brightness control buttons
Video image rotate button
Multifunction keyboard for English text input and system control
Audio & video functions: microphone for local recording, built-in speaker, mute/unmute recording, and 20x digital zoom
Wi-Fi connectivity for image sharing
With microphone for audio recording

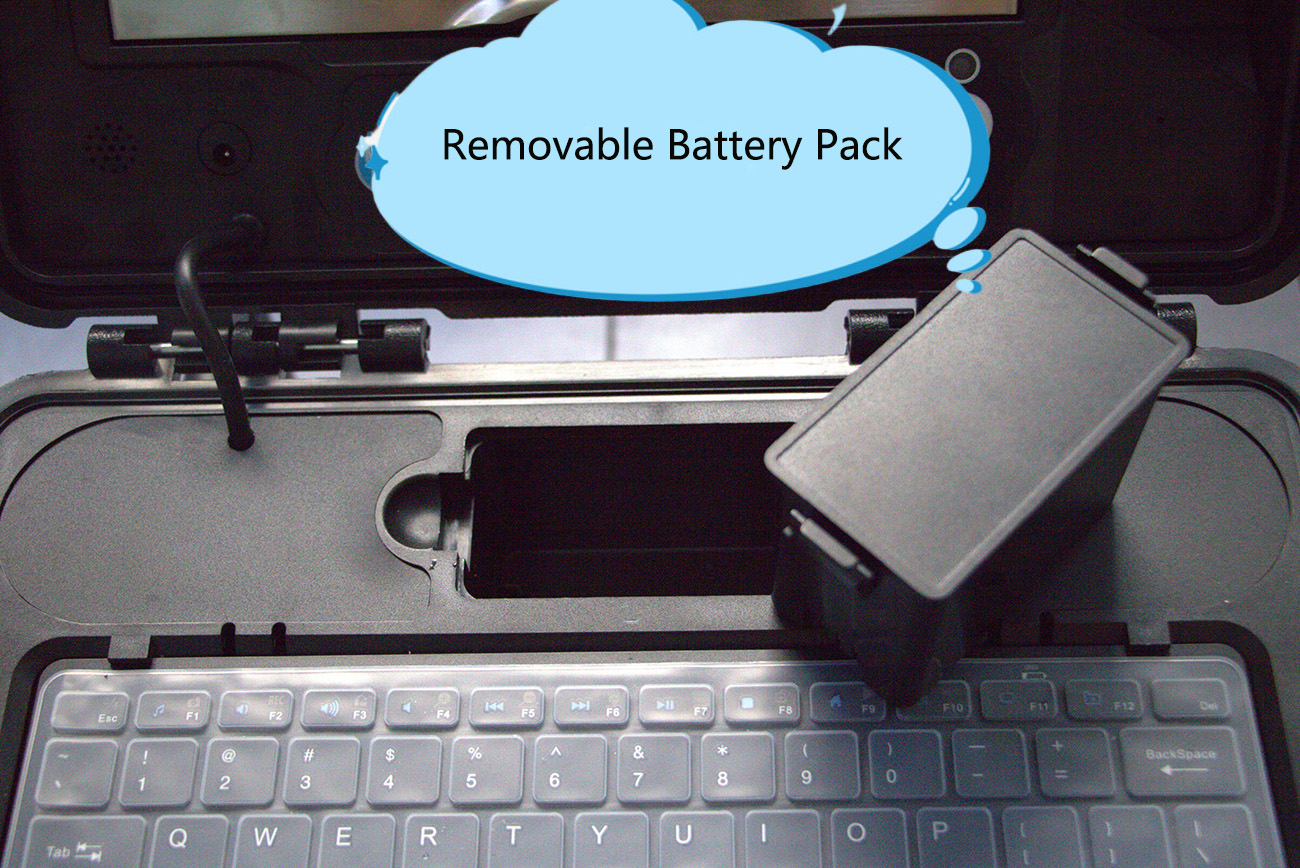

Rechargeable removable battery with up to 8 hours of operation;
On-Screen date and time
With self-leveling feature
On-screen meter/ft. distance display

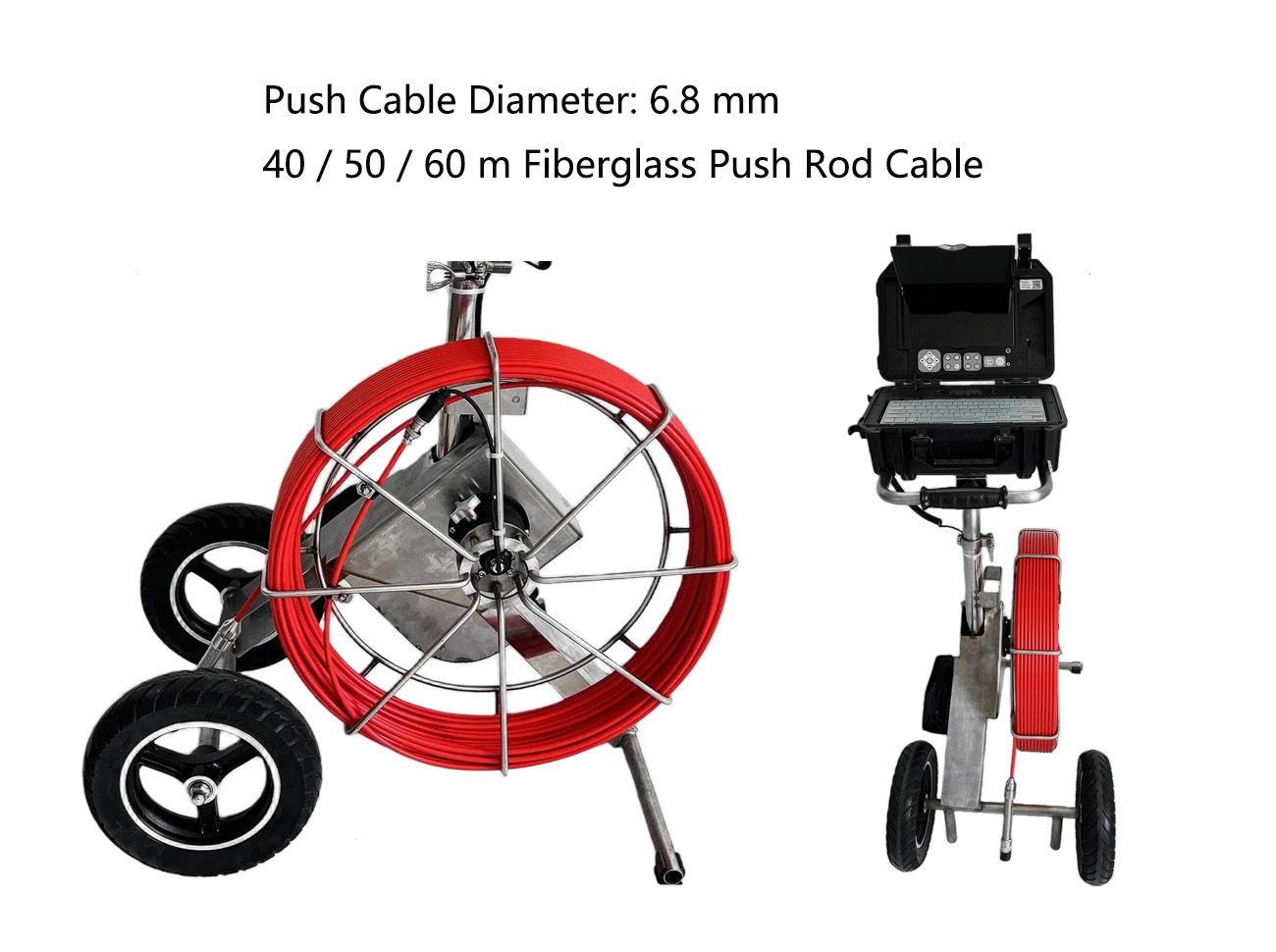

40-60m fiberglass push rod
With universal installation brackets
Built-in 512hz sonde
13.3" LCD screen
10.1" LCD screen

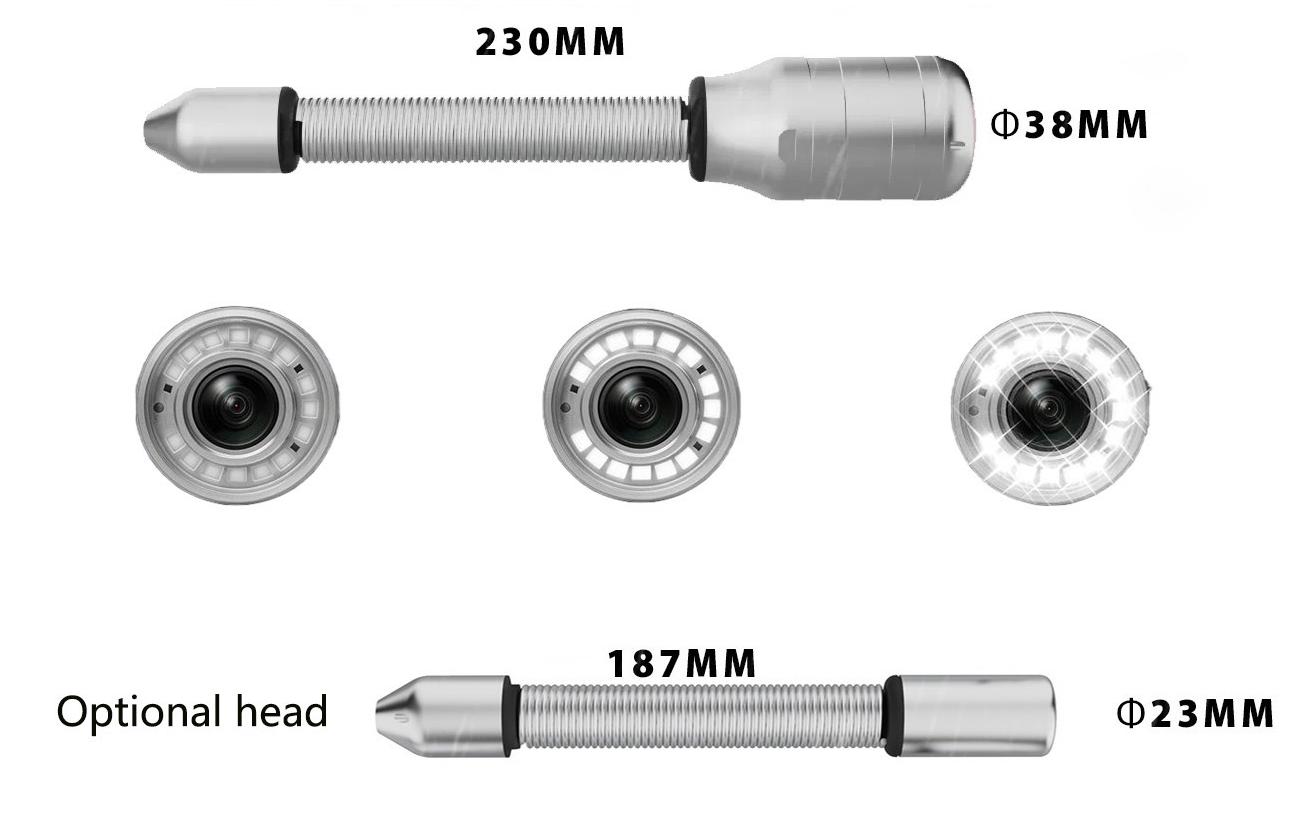

23mm head / 38mm head
Key Features:
Optional Features:
